Rugged AR2 Mission Computer

The AR2 is a small, rugged, and SWaP-optimized tactical mission computer with a Core i7 2.3GHz 4th Gen Quad Core CPU and internal SSD drive.

DATASHEET REQUEST QUOTE

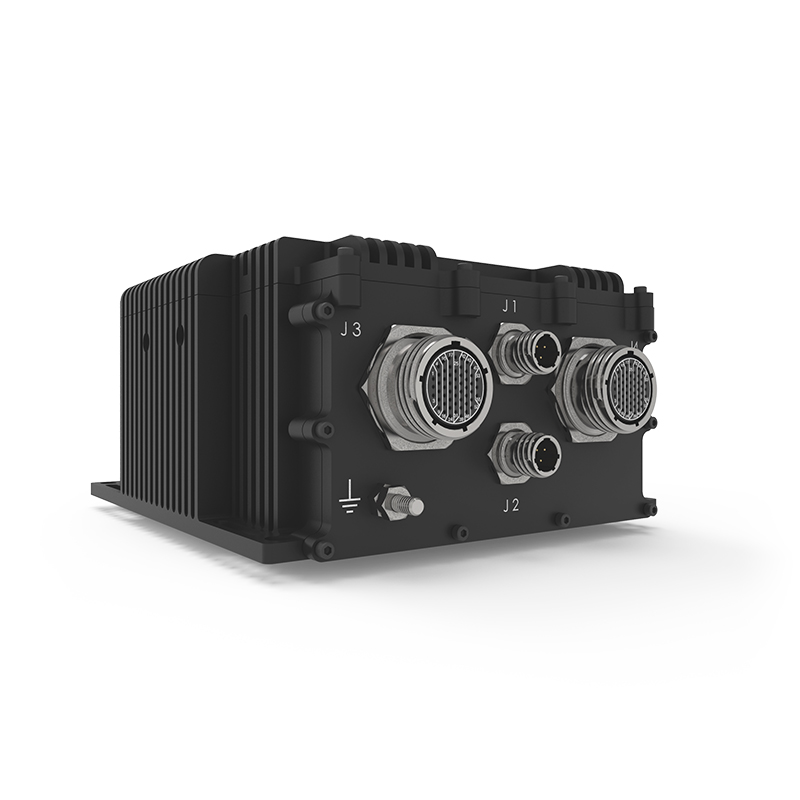

Rugged AR2

The AR2 is a small, rugged, and SWaP-optimized tactical mission computer with a Core i7 2.3GHz 4th Gen Quad Core CPU and internal SSD drive. It’s fully conduction cooled and allows for the addition of up to four internal cards (1553, GPS, D/A, etc) for expanded IO capability. The AR2 utilizes proprietary thermal transfer technology to cool the system without the use of moving parts. It’s completely sealed and is built to survive extreme temperature, shock, and vibration.

Rugged Series Structural Features

All Aluminum Construction

6061T-651 strain hardened structural aircraft aluminum 0.25 to 0.50” thick milled aluminum chassis cross-sections MIL-C-5541E Class 3 Chem Film protection.

Built to Survive to Shock and Vibe

The AR2 chassis is milled from solid blocks of aircraft aluminum to provide unmatched structural rigidity

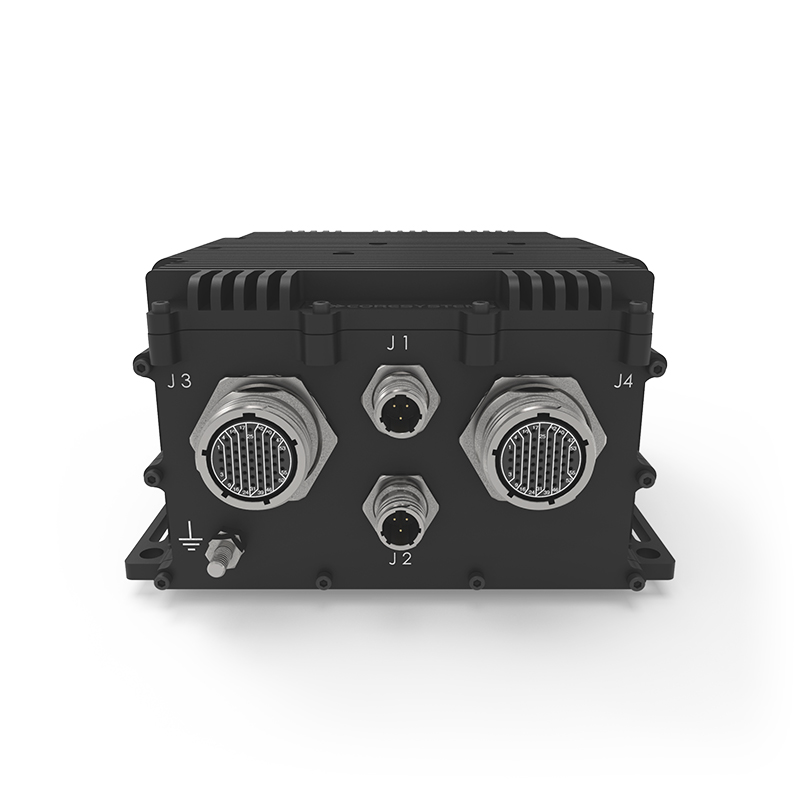

All outer MIL-Spec circular connectors are sealed and water tight
The entire AR2 chassis is completely sealed from elements

4.75" Height
7.0" Depth
6.12" Width
6.5 lbs Weight

DATASHEET REQUEST QUOTE

Technical Specifications

Environmental Specifications:	Operational Temperature Range: MIL-STD-810F/G, Method 501.5, Procedures I/II; -10C to +50C with solid state drives Storage: MIL-STD-810F/G, Method 501.5, Procedures I/II; -40C to +75C Humidity: MIL-STD-810F/G, Method 507.4; 48 hour, 95% RH 40-65C with humidity option Altitude: MIL-STD-810F/G, Method 500.4; 12,500ft operation with 40,000ft transport Vibration: MIL-STD-810F/G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis with solid state drives Shock: MIL-STD-810F/G, Method 516.6, Procedures I/V; 20g, 11msec functional shock; 40g 11msec crash hazard shock Other: MIL-STD-461F/G CE102 & RE102; Meets using CORESYSTEMS optional 461 EMI Kit
Mechanical:	Height - 4.75 in (12.06 cm), Width - 6.12 in (15.54 cm), Depth - 7.0 in (17.78 cm), Weight - 6.5 lbs (2.95 kg)
CPU:	Intel® CPU architecture options from Intel embedded long-life roadmap; Embedded long-life roadmap; Heat pipe technology heatsinks used; Intel® 1.86 GHz Core 2 Duo ULV CPU; Single core CPU with integrated graphics chip
Memory:	4GB DDR3 1066MHz 204pin
Hard Drive:	Option 1- (std) One (1) 2.5” 32GB SSD drive Option 2- One (1) 2.5” 64GB SSD drive Option 3- One (1) 2.5” 32GB SSD drive (second internal drive)
System Board:	Intel® Core 2 Duo 1086GHz, 4GB DDR3, PS/2 KB/M, CRT/ LVDS Interface, VGA, 8-USB 2.0, 2-GBLAN, AC97 Sound, 2x RS232/422/485, LPT, PS/2, RAID
Power Supply:	Option 1 – (std) 28VDC Option 2 – 100/240VAC with PFC

Environmental Specifications:
Operational Temperature Range: MIL-STD-810F/G, Method 501.5, Procedures I/II; -10C to +50C with solid state drives Storage: MIL-STD-810F/G, Method 501.5, Procedures I/II; -40C to +75C Humidity: MIL-STD-810F/G, Method 507.4; 48 hour, 95% RH 40-65C with humidity option Altitude: MIL-STD-810F/G, Method 500.4; 12,500ft operation with 40,000ft transport Vibration: MIL-STD-810F/G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis with solid state drives Shock: MIL-STD-810F/G, Method 516.6, Procedures I/V; 20g, 11msec functional shock; 40g 11msec crash hazard shock Other: MIL-STD-461F/G CE102 & RE102; Meets using CORESYSTEMS optional 461 EMI Kit
Mechanical:
Height - 4.75 in (12.06 cm), Width - 6.12 in (15.54 cm), Depth - 7.0 in (17.78 cm), Weight - 6.5 lbs (2.95 kg)
CPU:
Intel® CPU architecture options from Intel embedded long-life roadmap; Embedded long-life roadmap; Heat pipe technology heatsinks used; Intel® 1.86 GHz Core 2 Duo ULV CPU; Single core CPU with integrated graphics chip
Memory:
4GB DDR3 1066MHz 204pin
Hard Drive:
Option 1- (std) One (1) 2.5” 32GB SSD drive Option 2- One (1) 2.5” 64GB SSD drive Option 3- One (1) 2.5” 32GB SSD drive (second internal drive)
System Board:
Intel® Core 2 Duo 1086GHz, 4GB DDR3, PS/2 KB/M, CRT/ LVDS Interface, VGA, 8-USB 2.0, 2-GBLAN, AC97 Sound, 2x RS232/422/485, LPT, PS/2, RAID
Power Supply:
Option 1 – (std) 28VDC Option 2 – 100/240VAC with PFC
