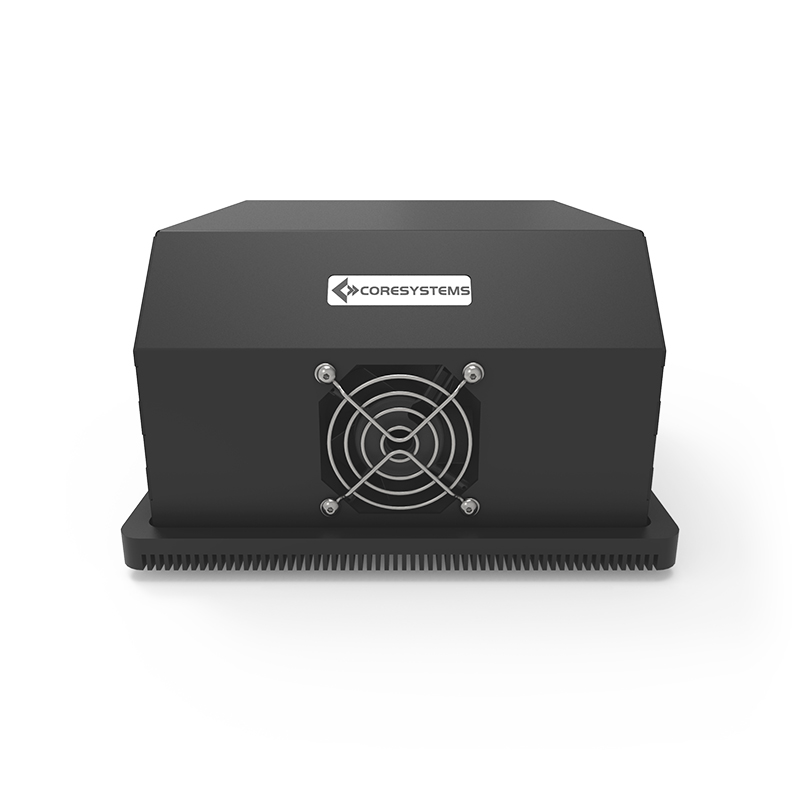

Rugged AR4

The AR4 is a small, rugged, and SWaP-optimized rugged tactical mission computer with a Core i7 2.3GHz 4th Gen Quad Core CPU and one removable SSD drive.

DATASHEET REQUEST QUOTE

Rugged AR4

The AR4 is a small, rugged, and SWaP-optimized tactical computer with a Core i7 2.3GHz 4th Gen Quad Core CPU and one removable SSD drive. It’s fully conduction cooled and allows for the addition of up to four internal cards (1553, GPS, D/A, etc) for expanded IO capability. The AR4 utilizes proprietary thermal transfer technology to cool the system without the use of moving parts. The chassis has been completely redesigned to provide 200% more surface area for unparalleled cooling capacity. It’s completely sealed and is built to survive extreme temperature, shock, and vibration.

4.6" Height
7.5" Depth
6.15" Width

DATASHEET REQUEST QUOTE

Technical Specifications

Environmental Specifications:	Operational Temperature Range: MIL-STD-810F/G, Method 501.5, Procedures I/II; -10C to +50C with solid state drives Storage: MIL-STD-810F/G, Method 501.5, Procedures I/II; -40C to +75C Humidity: MIL-STD-810F/G, Method 507.4; 48 hour, 95% RH 40-65C with humidity option Altitude: MIL-STD-810F/G, Method 500.4; 12,500ft operation with 40,000ft transport Vibration: MIL-STD-810F/G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis with solid state drives Shock: MIL-STD-810F/G, Method 516.6, Procedures I/V; 20g, 11msec functional shock; 40g 11msec crash hazard shock Other: MIL-STD-461F/G CE102 & RE102; Meets using CORESYSTEMS optional 461 EMI Kit
Mechanical:	Height - 4.6 in (11.68 cm), Width - 6.15 in (15.62 cm), Depth - 7.5 in (19.05 cm),
CPU:	4th Gen Intel Core i5/i7 Processors
Drive Count:	One (1) to Two (2) drives SSD 2.5
Cooling:	Passive cooling, no internal fans
Power Supply Options:	PCIE/104 AC or DC
System Board:	PCIE/104 Embedded Board

Environmental Specifications:
Operational Temperature Range: MIL-STD-810F/G, Method 501.5, Procedures I/II; -10C to +50C with solid state drives Storage: MIL-STD-810F/G, Method 501.5, Procedures I/II; -40C to +75C Humidity: MIL-STD-810F/G, Method 507.4; 48 hour, 95% RH 40-65C with humidity option Altitude: MIL-STD-810F/G, Method 500.4; 12,500ft operation with 40,000ft transport Vibration: MIL-STD-810F/G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis with solid state drives Shock: MIL-STD-810F/G, Method 516.6, Procedures I/V; 20g, 11msec functional shock; 40g 11msec crash hazard shock Other: MIL-STD-461F/G CE102 & RE102; Meets using CORESYSTEMS optional 461 EMI Kit
Mechanical:
Height - 4.6 in (11.68 cm), Width - 6.15 in (15.62 cm), Depth - 7.5 in (19.05 cm),
CPU:
4th Gen Intel Core i5/i7 Processors
Drive Count:
One (1) to Two (2) drives SSD 2.5
Cooling:
Passive cooling, no internal fans
Power Supply Options:
PCIE/104 AC or DC
System Board:
PCIE/104 Embedded Board
