Rugged Mission Computers

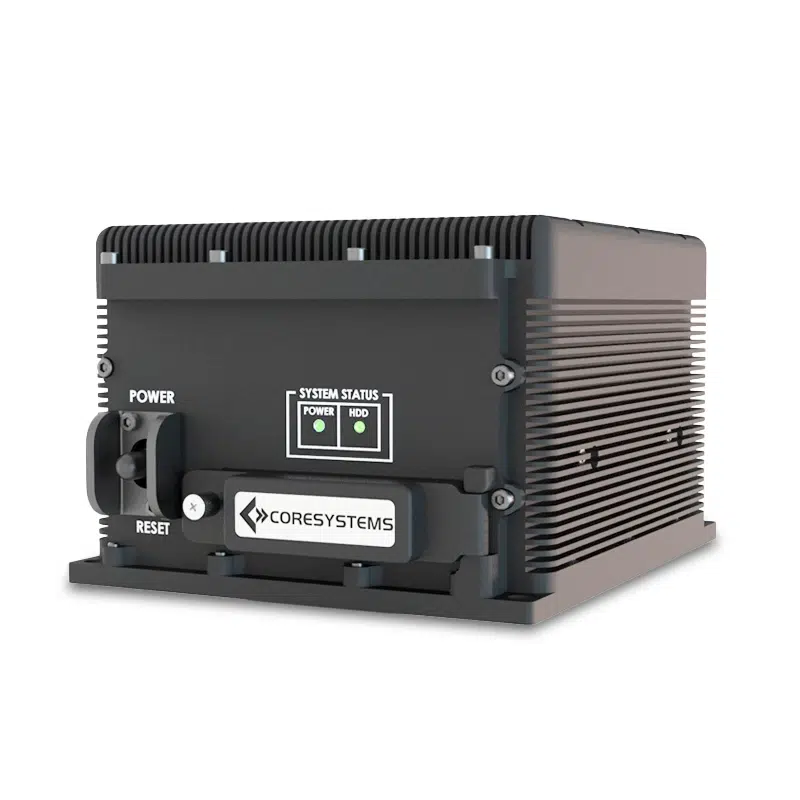

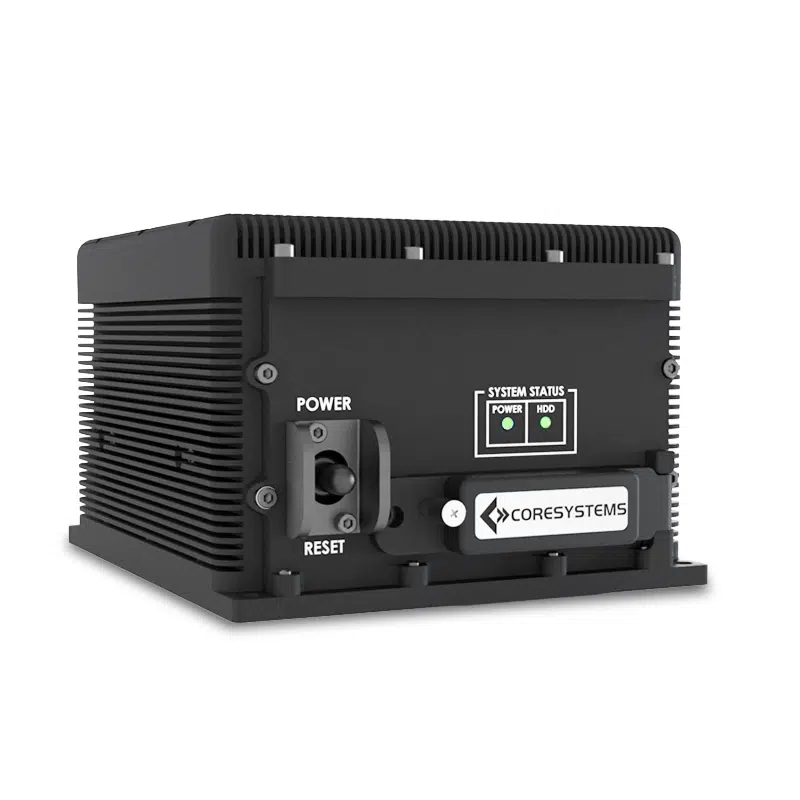

Rugged AR7

The AR7 is a small, rugged, and SWaP optimized tactical mission computer with the latest Intel Gen Quad Core CPU.

  • Fully conduction-cooled
  • Small Form Factor (SFF)
  • Utilizes proprietary thermal transfer technology to cool the system without the use of moving parts
  • Completely sealed chassis built to survive extreme temperature, shock, and vibration

  • Fully conduction-cooled
  • Small Form Factor (SFF)
  • Utilizes proprietary thermal transfer technology to cool the system without the use of moving parts
  • Completely sealed chassis built to survive extreme temperature, shock, and vibration

Rugged Mission Computers

Technical Specifications
Height 4.56 in
Width 6.36 in
Depth 8.65 in
Weight 7.5 lbs
Power 28VDC
RAM 8GB
Cores 4-12x
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long

Coming Soon

Rugged Mission Computers

Related Designs

Military-Ready Design

Rugged AR7 Features

Rugged Chassis

Space-saving design built for your application.

Latest Technology

We provide the latest computing technology to give you the edge you need out in the field.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Rugged AR7

Technical Specifications
Height 4.56 in
Width 6.36 in
Depth 8.65 in
Weight 7.5 lbs
Power 28VDC
RAM 8GB

Rugged AR7

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long

Rugged AR7
