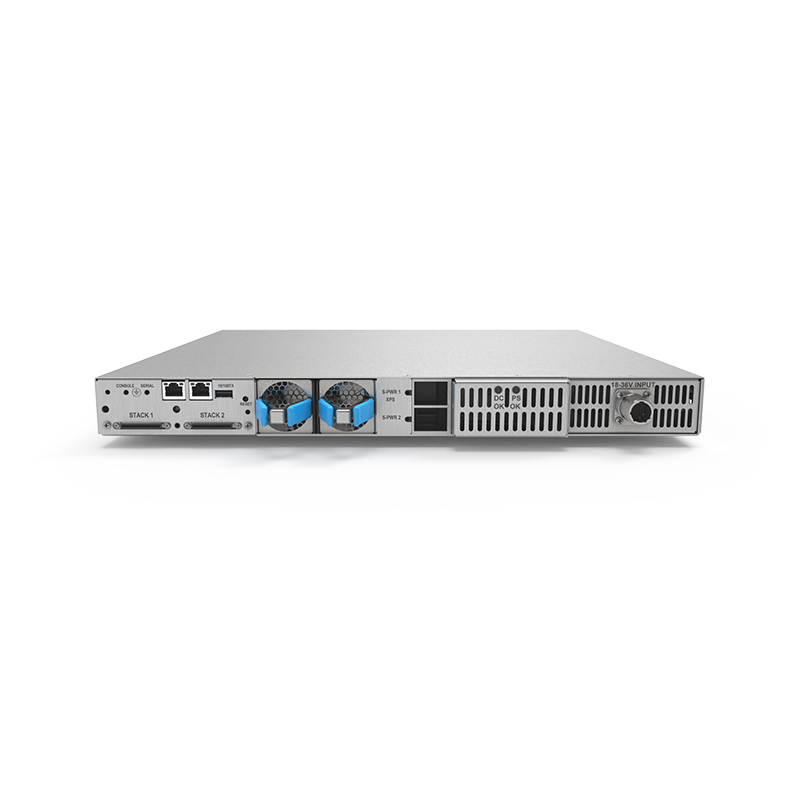

Rugged Cisco 3750-X Router

The Rugged Core Systems 3750-X Cisco Integrated Services Router (ISR) has been carefully redesigned and repackaged using aluminum over steel to reduce the chassis depth and to lighten the overall system weight.

  • To comply with DO-160 aircraft power requirements, Core Systems converts the AC power to a mil-circular 38999 connector for 18-36VDC
  • All internal components are locked down using our precise robotic potting technique.
  • 4x Gigabit Ethernet (GbE) SFP or 2x 10GbE SFP+ uplink network modules and an industry-first PoE+
  • 30W power on all ports
  • USB Type-A and Type-B ports for storage and console respectively

  • To comply with DO-160 aircraft power requirements, Core Systems converts the AC power to a mil-circular 38999 connector for 18-36VDC
  • All internal components are locked down using our precise robotic potting technique.
  • 4x Gigabit Ethernet (GbE) SFP or 2x 10GbE SFP+ uplink network modules and an industry-first PoE+
  • 30W power on all ports
  • USB Type-A and Type-B ports for storage and console respectively

Rugged Cisco Systems

Technical Specifications
Height 1.75 in
Width 17.50 in
Depth 16.21 in
Weight 11.40 lbs
USB Ports 2
Power 18-36 VDC
RAM 256GB
Expansion Slots Qty: 1, full height
Packets per second (MPPS): 101.2
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has provides a number of ruggedized Cisco products that are built to meet MIL-Spec Standards.

Application-Specific

Built Rugged to Last Long

We build and design ruggedized routers and switches that can be customized for your mission.

Coming Soon

Rugged Cisco Systems

Related Designs

Military-Ready Design

Rugged Cisco 3750-X Router Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged Cisco 3750-X Router

Technical Specifications
Height 1.75 in
Width 17.50 in
Depth 16.21 in
Weight 11.40 lbs
USB Ports 2
Power 18-36 VDC
Chassis Type
RAM 256GB
Expansion Slots Qty: 1, full height
Packets per second (MPPS): 101.2

Rugged Cisco 3750-X Router

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has provides a number of ruggedized Cisco products that are built to meet MIL-Spec Standards.

Application-Specific

Built Rugged to Last Long

We build and design ruggedized routers and switches that can be customized for your mission.
