Rugged Cisco 8851 IP Phone

Rugged Cisco Systems

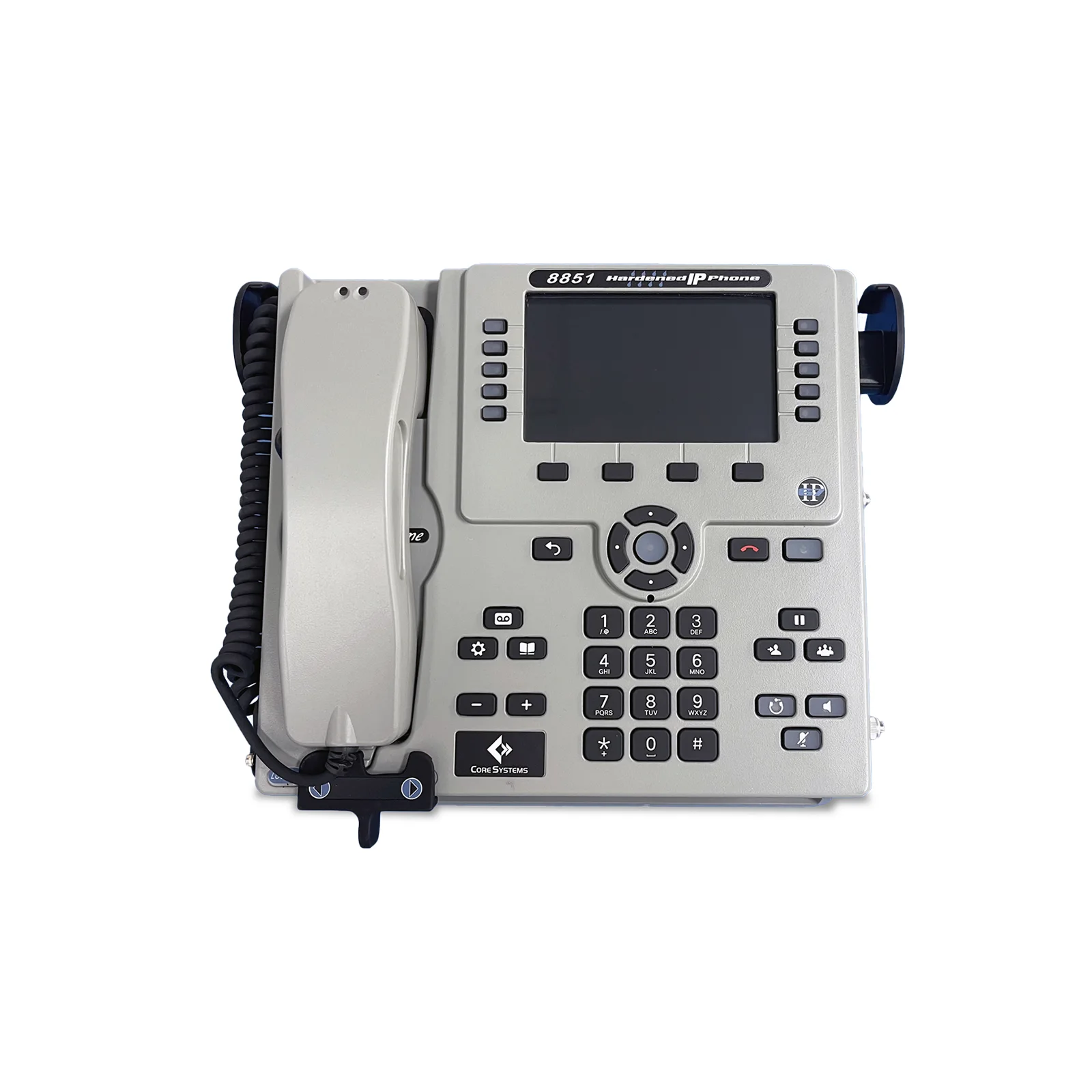

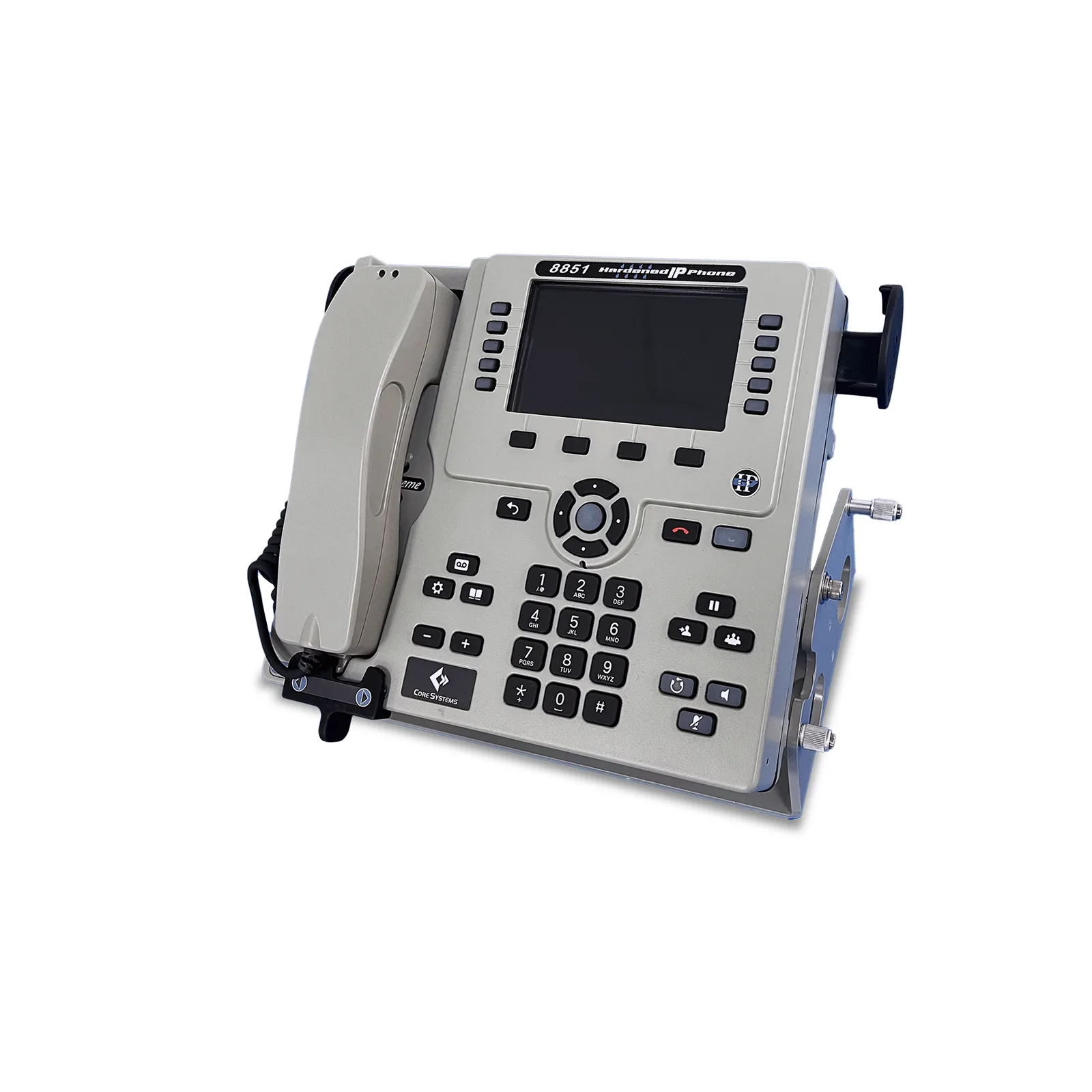

The Rugged Cisco 8851 IP Phone from Core Systems is a ruggedized Cisco 8851 IP phone that meets CNSS (Committee on National Security Systems) requirements for both PoE and AC-powered installations requiring a rugged industrial VoIP solution. It supports full Cisco 8851 functionality, including Hold, Mute, and Hands-Free capabilities.

Engineered for harsh environments, the Rugged Cisco 8851 IP Phone has been tested and approved to meet MIL-810F environmental and MIL-STD 461E EMI/EMC specifications. This TSG Class B certified VoIP phone requires no external equipment to ensure on-hook security in sensitive areas. It provides positive disconnect of all transducers when On-Hook or On-Hold and offers complete mechanical isolation of all Ethernet wire pairs, preventing any triboelectric noise when the phone is in a dead-line state.

  • Application-specific design
  • Tested to meet military standards
  • Built in the USA

Engineered for harsh environments, the Rugged Cisco 8851 IP Phone has been tested and approved to meet MIL-810F environmental and MIL-STD 461E EMI/EMC specifications. This TSG Class B certified VoIP phone requires no external equipment to ensure on-hook security in sensitive areas. It provides positive disconnect of all transducers when On-Hook or On-Hold and offers complete mechanical isolation of all Ethernet wire pairs, preventing any triboelectric noise when the phone is in a dead-line state.

  • Application-specific design
  • Tested to meet military standards
  • Built in the USA

Height 11.10 in
Width 8.90 in
Depth 3.65 in
Weight 4.5 lbs
Expansion Slots Qty: 1, full height
Power 48 VDC via PoE or optional AC-to-DC adapter
Connectivity Dual Gigabit Ethernet ports: IP67 Mil-Spec RJ45 for the LAN 10/100/1000BaseT connection and a second 10/100/1000BaseT compliant connection (labeled PC)
Display 5-inch TFT color display; 320 × 420 px resolution; 16-bit color depth
Interface 24+ adjustable ringtones
Audio Performance Full-duplex speakerphone with acoustic noise cancellation G.711a/µ, G.729a/ab, G.722, and iLBC audio codecs supported
Network Compatibility Compatible with H.323 and Microsoft NetMeeting DHCP or static IP configuration for flexible deployment
Handset & Headset IP68 Connection
Chassis Type Chassis Type Cast Aluminum Available in Navy Grey, Olive Drab (OD), or Desert Sand
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
