Rugged Cisco M222S - C220 - Core Systems

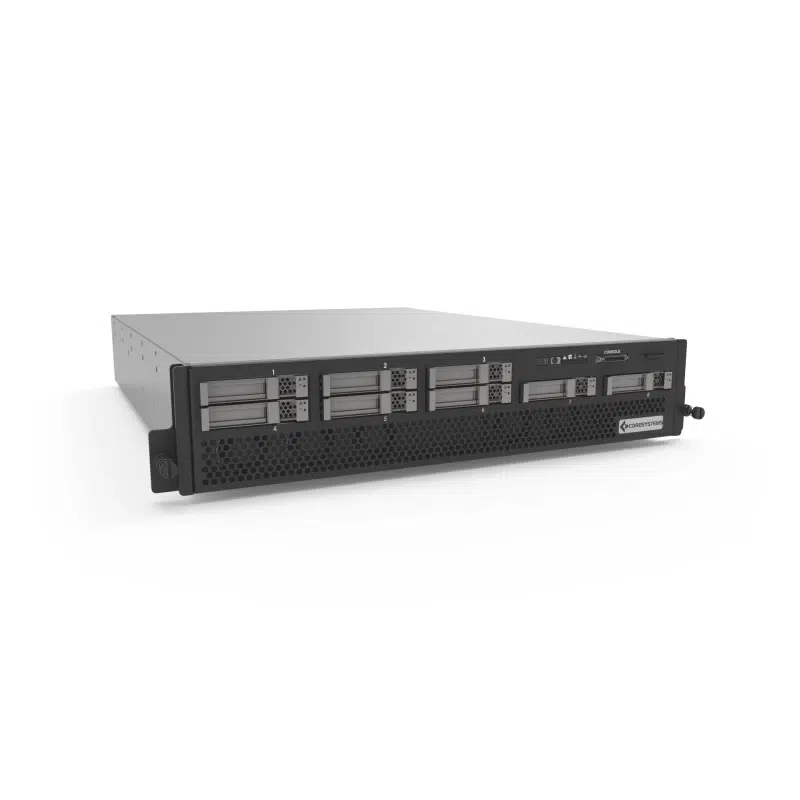

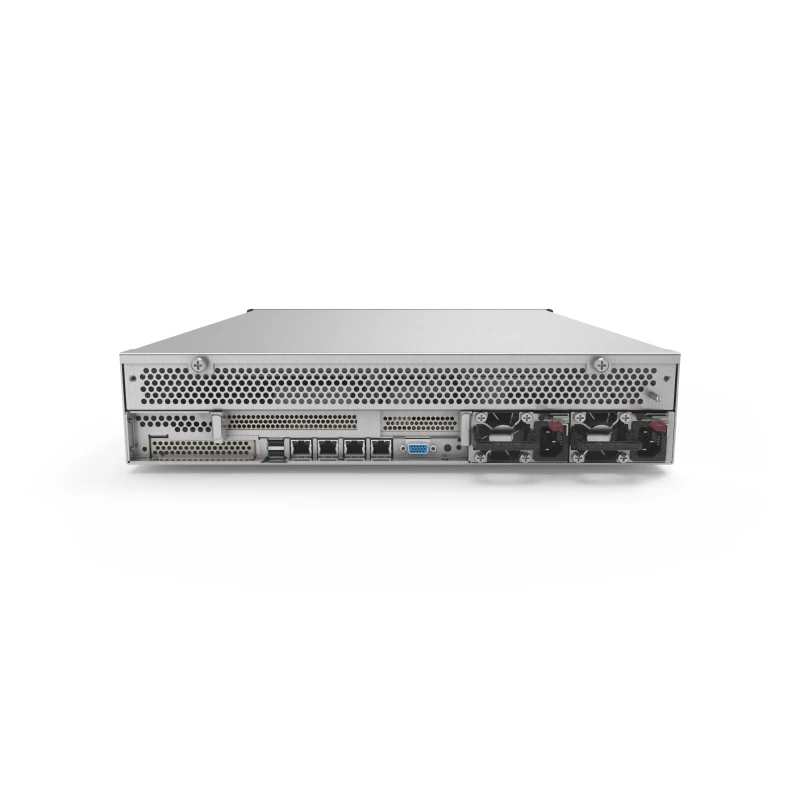

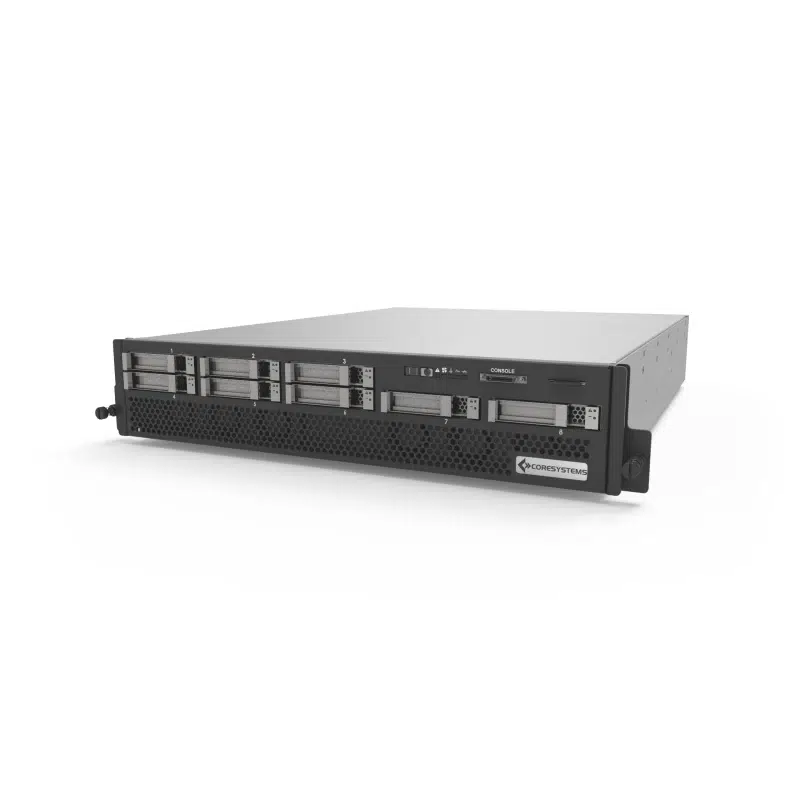

Rugged Cisco M222S - C220 Server

Rugged Cisco Systems

The Core Systems Rugged M222S-C220 Cisco Server is the most versatile, general-purpose MIL-Spec enterprise infrastructure and application server in the industry. It is a high-density two-socket enterprise-class rack server that delivers industry-leading performance and efficiency for a wide range of enterprise workloads, including virtualization, collaboration, and bare-metal applications. The MIL-SPEC Rugged M222S-C220 Cisco Servers can be deployed as standalone servers or as part of the Cisco Unified Computing System™ (Cisco UCS) to take advantage of Cisco’s standards-based unified computing innovations that help reduce customers’ total cost of ownership (TCO) and increase their business agility.

  • High-density two-socket enterprise-class rack server.
  • Perfect for a wide range of enterprise workloads, including virtualization, collaboration, and bare-metal applications.
  • Compact 1RU package.
  • 24 DDR4 DIMMs for improved performance and lower power consumption
  • 2x PCIe Gen 3.0 slots available for other expansion cards
  • 2x embedded 1 Gigabit Ethernet LAN-on-motherboard (LOM) ports.

Rugged Cisco Server C222S
Rugged Cisco Server C222S
Rugged Cisco Server C222S
Rugged Cisco Server C222S
Rugged Cisco Server C222S
Rugged Cisco Server C222S
Rugged Cisco Server C222S
Rugged Cisco Server C222S

  • High-density two-socket enterprise-class rack server.
  • Perfect for a wide range of enterprise workloads, including virtualization, collaboration, and bare-metal applications.
  • Compact 1RU package.
  • 24 DDR4 DIMMs for improved performance and lower power consumption
  • 2x PCIe Gen 3.0 slots available for other expansion cards
  • 2x embedded 1 Gigabit Ethernet LAN-on-motherboard (LOM) ports.
Height 1.75 in
Width 19.00 in
Depth 22.00 in
Weight 23.5 lbs
Cooling High CFM, low decibel
Power 770W
Chassis Type Lightweight aluminum chassis
Expansion Slots Qty: 1, full height
Memory 24 DDR4 DIMM slots; Support for DDR4 registered RDIMMs and LRDIMMs; Advanced error-correcting code (ECC); Independent Channel Mode; Mirrored Channel Mode; Lockstep Channel Mode
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
