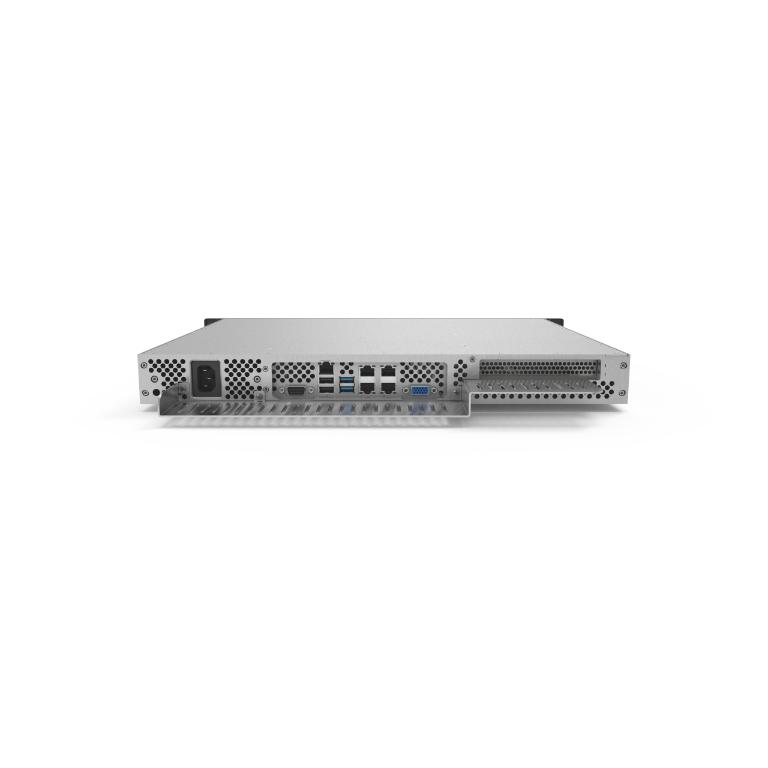

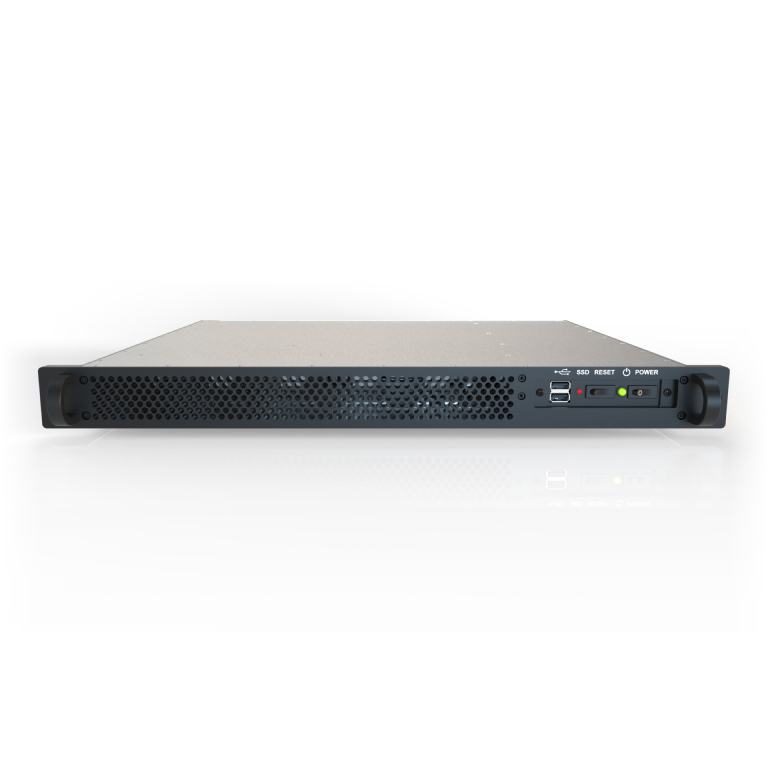

Rugged M114

The M114 is a rugged short-depth 1U server made for applications with a max 14" inch depth requirement. The SWaP-Optimized M114 is tested for military use and can be customized to fit your mission.

  • Ultra-sturdy, all-aluminum chassis
  • The M114 supports the latest Intel 4th Gen Xeon Scalable Processor
  • Supports shock-mounted, hot-swap drives and a shock-mounted DVDRW
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet

  • Ultra-sturdy, all-aluminum chassis
  • The M114 supports the latest Intel 4th Gen Xeon Scalable Processor
  • Supports shock-mounted, hot-swap drives and a shock-mounted DVDRW
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet

Rugged Servers

Technical Specifications
Height 1.75 in
Width 19.00 in
Depth 14.00 in
Weight 15-21 lbs
CPU 4th Gen Intel Xeon Scalable Processor, 13th Gen Intel Core i9 Processor
RAM 512GB
Expansion Slots Qty: 1, full height
External Bays 2
USB Ports 4
PCIE Expansion Multiple slot combinations available
Cooling Thermostatically controlled via motherboard
Power 28VDC, 400W AC
System Board Extended ATX Motherboard
Chassis Type Lightweight aluminum chassis
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Short-Depth Design

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

Rugged Design

Modern Battlefield Tech

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Core-Systems-M114-Server-Datasheet.pdf

Rugged Servers

Related Designs

Military-Ready Design

Rugged M114 Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged M114

Technical Specifications
Height 1.75 in
Width 19.00 in
Depth 14.00 in
Weight 15-21 lbs
CPU 4th Gen Intel Xeon Scalable Processor, 13th Gen Intel Core i9 Processor
Expansion Slots Qty: 1, full height
External Bays 2
USB Ports 4
PCIE Expansion Multiple slot combinations available
Cooling Thermostatically controlled via motherboard
Power 28VDC, 400W AC
System Board Extended ATX Motherboard
Chassis Type Lightweight aluminum chassis

Rugged M114

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Short-Depth Design

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

Rugged Design

Modern Battlefield Tech

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Rugged M114
