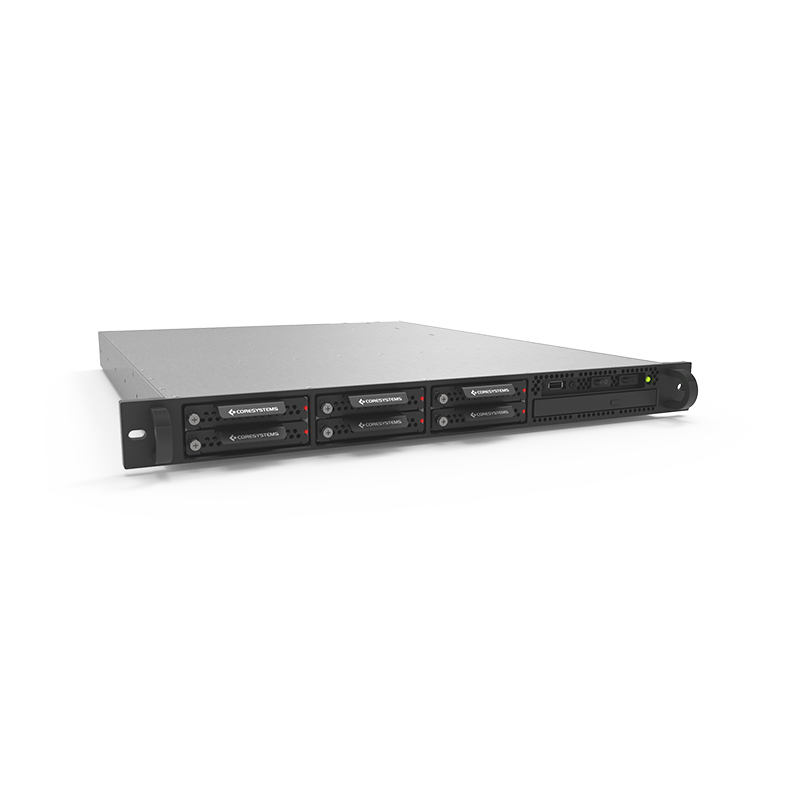

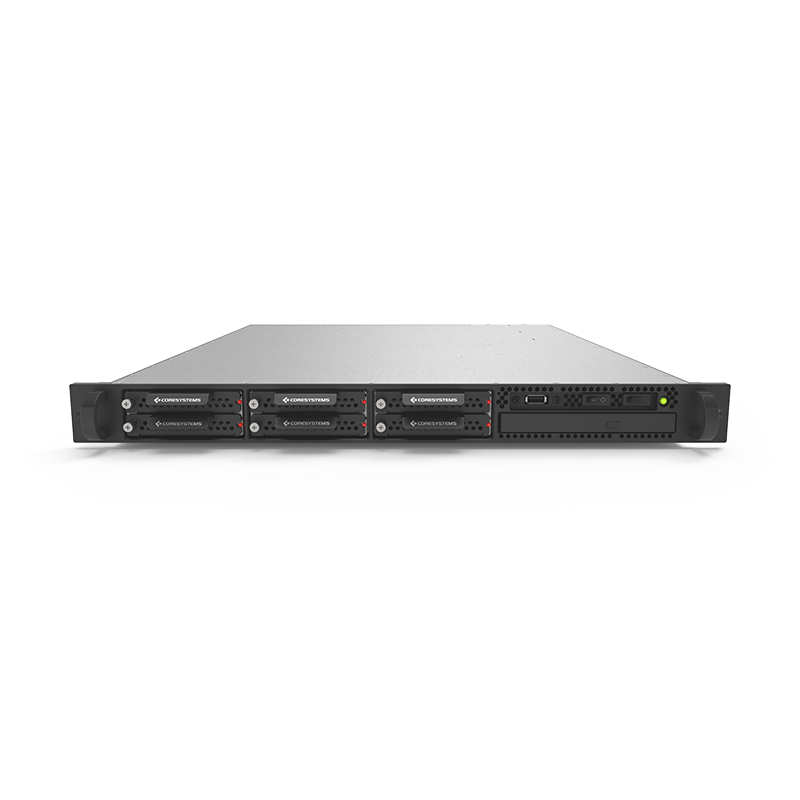

Rugged M122

The M122 is a rugged 1U server built with aircraft aluminum and made for applications that require short-depth solutions. The Rugged M122 server has been tested to meet military specifications.

  • Ultra-sturdy, all-aluminum chassis
  • The M122 supports the latest Intel Quad and Hexa-Core CPUs
  • Includes the latest single-stack NVIDIA® Tesla® GPU Card
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet

  • Ultra-sturdy, all-aluminum chassis
  • The M122 supports the latest Intel Quad and Hexa-Core CPUs
  • Includes the latest single-stack NVIDIA® Tesla® GPU Card
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet

Request A Quote For The Rugged M122

Fill out the form below for pricing and information on the Rugged M122

Rugged Servers

Technical Specifications
Height 1.75 in
Width 17.75 in
Depth 22.00 in
Weight 15-21 lbs
CPU Latest Gen Intel CPU
RAM 1TB
Expansion Slots Qty: 1, full height
External Bays 6
USB Ports 3
PCIE Expansion Multiple slot combinations available
Cooling Thermostatically controlled via motherboard, 40mm high speed, high volume fans
Power 28VDC, 600W AC
System Board Extended ATX Motherboard
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Rugged Design

Modern Battlefield Tech

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

Core-Systems-M122-Server-Datasheet.pdf

Rugged Servers

Related Designs

Military-Ready Design

Rugged M122 Features

Short-Depth

Space-saving design built for your application.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Request A Quote For The Rugged M122

Fill out the form below for pricing and information on the Rugged M122

Rugged M122

Technical Specifications
Height 1.75 in
Width 17.75 in
Depth 22.00 in
Weight 15-21 lbs
CPU Latest Gen Intel CPU
Expansion Slots Qty: 1, full height
External Bays 6
USB Ports 3
PCIE Expansion Multiple slot combinations available
Cooling Thermostatically controlled via motherboard, 40mm high speed, high volume fans
Power 28VDC, 600W AC
System Board Extended ATX Motherboard

Rugged M122

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Rugged Design

Modern Battlefield Tech

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.
