Rugged Cisco Systems

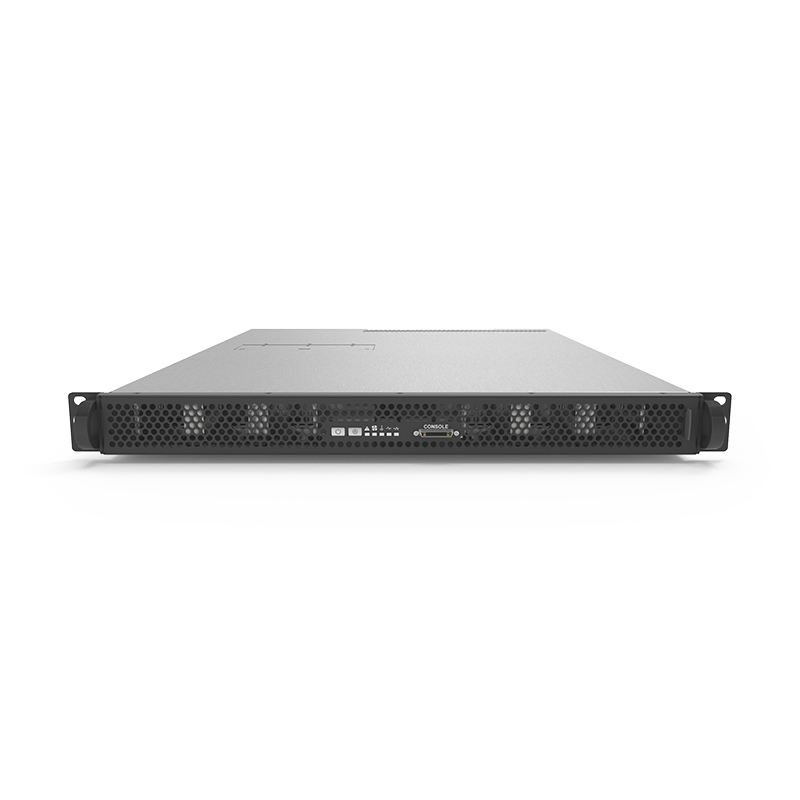

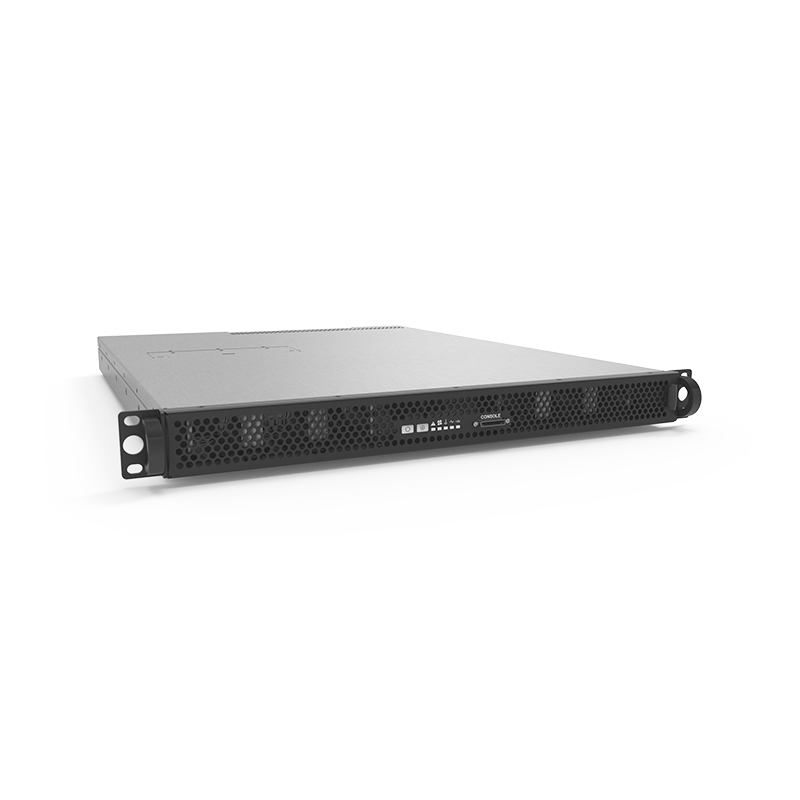

Rugged M122S-C220 1U Server

The Core Systems MIL-SPEC Rugged M122S-C220 Cisco 1U Server is the most versatile, general-purpose enterprise infrastructure and application server in the industry.

  • High-density two-socket enterprise-class rack server.
  • Perfect for a wide range of enterprise workloads, including virtualization, collaboration, and bare-metal applications.
  • Compact 1RU package.
  • 24 DDR4 DIMMs for improved performance and lower power consumption
  • 2x PCIe Gen 3.0 slots available for other expansion cards
  • 2x embedded 1 Gigabit Ethernet LAN-on-motherboard (LOM) ports.

Datasheet

  • High-density two-socket enterprise-class rack server.
  • Perfect for a wide range of enterprise workloads, including virtualization, collaboration, and bare-metal applications.
  • Compact 1RU package.
  • 24 DDR4 DIMMs for improved performance and lower power consumption
  • 2x PCIe Gen 3.0 slots available for other expansion cards
  • 2x embedded 1 Gigabit Ethernet LAN-on-motherboard (LOM) ports.

Datasheet

Rugged Cisco Systems

Technical Specifications
Height 1.75 in
Width 19.00 in
Depth 22.00 in
Weight 23.5 lbs
Cooling High CFM, low decibel
Power 770W
Chassis Type Lightweight aluminum chassis
Expansion Slots Qty: 1, full height
Memory 24 DDR4 DIMM slots; Support for DDR4 registered RDIMMs and LRDIMMs; Advanced error-correcting code (ECC); Independent Channel Mode; Mirrored Channel Mode; Lockstep Channel Mode
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has provides a number of ruggedized Cisco products that are built to meet MIL-Spec Standards.

Rugged Design

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

CISCO-M122S-C220-M5-SERVER-2019.pdf

Rugged Cisco Systems

Related Designs

Military-Ready Design

Rugged M122S-C220 1U Server Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged M122S-C220 1U Server

Technical Specifications
Height 1.75 in
Width 19.00 in
Depth 22.00 in
Weight 23.5 lbs
Cooling High CFM, low decibel
Power 770W
Chassis Type Lightweight aluminum chassis
Expansion Slots Qty: 1, full height
Memory 24 DDR4 DIMM slots; Support for DDR4 registered RDIMMs and LRDIMMs; Advanced error-correcting code (ECC); Independent Channel Mode; Mirrored Channel Mode; Lockstep Channel Mode

Rugged M122S-C220 1U Server

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has provides a number of ruggedized Cisco products that are built to meet MIL-Spec Standards.

Rugged Design

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Rugged M122S-C220 1U Server
