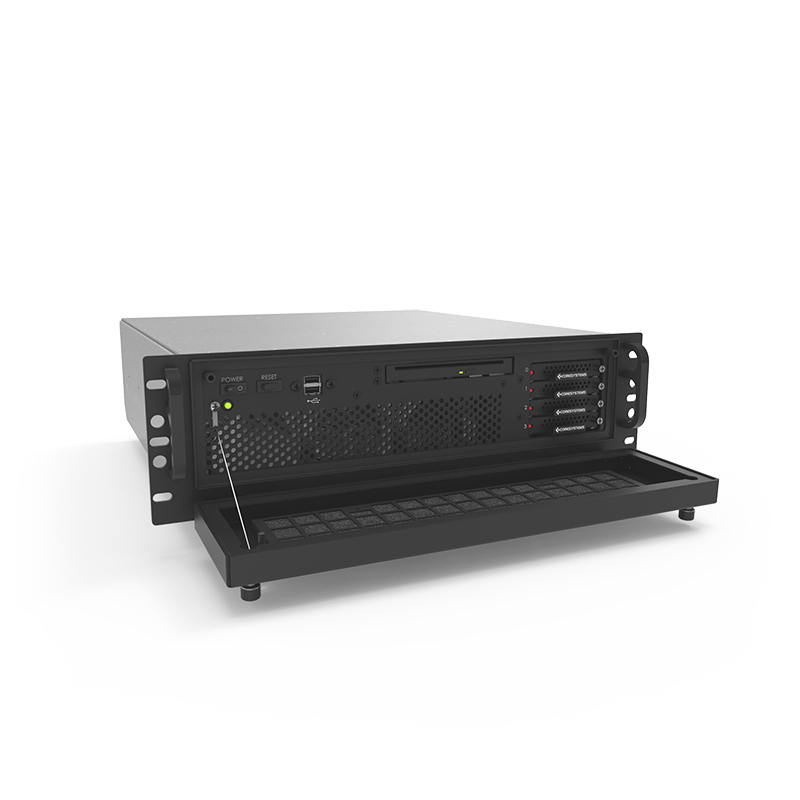

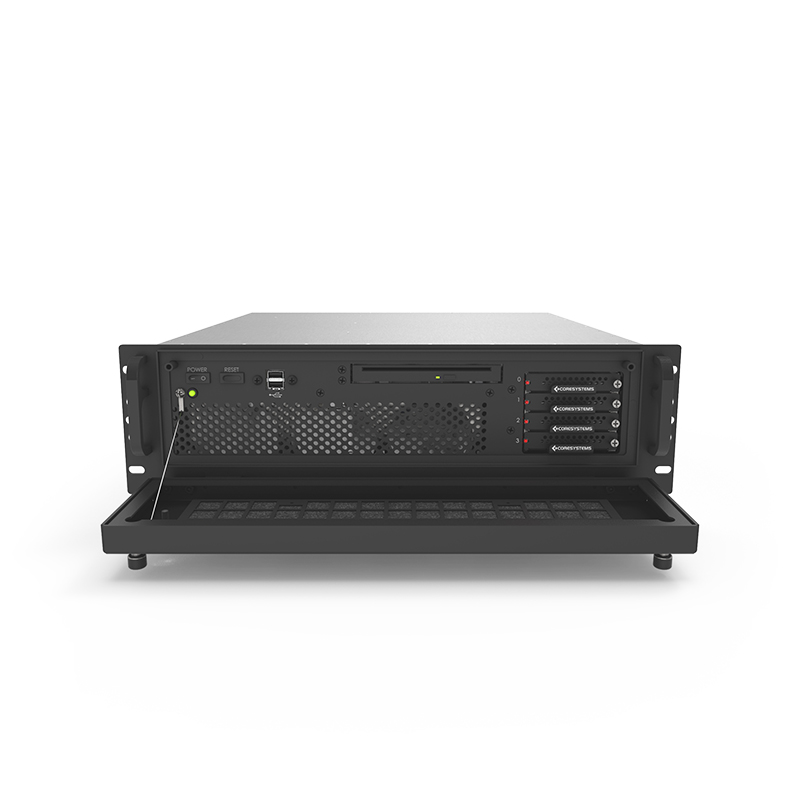

Rugged M318S 3U Server

The M318S Raptor is a short-depth 3U server made for rugged applications with a maximum 18″ depth requirement. The machined aircraft aluminum chassis provides superior strength to weight ratio. All internal cabling is customized and secured to the chassis to optimize airflow and system cooling. The M318S supports the latest Intel Hexa-core CPUs while providing up to five open PCI slots on the rear of the chassis. All five feature cards are secured to the chassis via a proprietary card hold-down system. The M318S supports single and dual redundant power supplies in both AC and DC inputs. The M318S server is built to survive high shock and vibration environments. Options for conformal coating and EMI filtering are offered on each system.

5.25" Height
18.00" Depth
17.00" Width
30-35 Weight

DATASHEET REQUEST QUOTE

Technical Specifications

Environmental Specifications:	Operational Temperature Range: MIL-STD-810F/G, Method 501.5, Procedures I/II; -10C to +50C with solid state drives Storage: MIL-STD-810F/G, Method 501.5, Procedures I/II; -40C to +75C Humidity: MIL-STD-810F/G, Method 507.4; 48 hour, 95% RH 40-65C with humidity option Altitude: MIL-STD-810F/G, Method 500.4; 12,500ft operation with 40,000ft transport Vibration: MIL-STD-810F/G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis with solid state drives Shock: MIL-STD-810F/G, Method 516.6, Procedures I/V; 20g, 11msec functional shock; 40g 11msec crash hazard shock Other: MIL-STD-461F/G CE102 & RE102; Meets using CORESYSTEMS optional 461 EMI Kit
Mechanical:	Height - 5.25 in (13.33 cm), Width - 17.00 in (43.18 cm), Depth - 18.00 in (45.72 cm), Weight - 30-35 lbs (13.6-15.8 kg)
CPU:	Intel® CPU architecture options from Intel embedded long-life roadmap; Vapor chamber technology heatsinks; Intel E5-2600v4 Series CPUs; Dual 10-Core or dual 12-Core CPU options
Expansion Slots:	One (5) full-height, 3/4 length slot; multiple PCIe slot combinations are available
External Bays:	Option 1- (std) Two (2) removable hot swap SATA or SAS 2.5 HDDs; Option 2- Two (2) removable hot swap 2.5 SATA SSD HDDs; Option 3- (offered along with option 1 or 2) One (1) slim line CD/DVD (R/W) or Blu-ray ODD
Cooling:	90mm high speed, high volume fans (4 front mount + 2 PS); Thermostatically controlled via motherboard
Power Supply Options:	Option 1- (std) 600W AC power supply; Option 2- 28VDC power supply
System Board:	X9DR3-F, Socket 2011, 256GB ECC Reg. DDR3, PS/2 KB/M, DB9 Serial, VGA, 4-USB, 2-GBLAN, On-board SAS, IPMI w/ KVM over IP

Environmental Specifications:
Operational Temperature Range: MIL-STD-810F/G, Method 501.5, Procedures I/II; -10C to +50C with solid state drives Storage: MIL-STD-810F/G, Method 501.5, Procedures I/II; -40C to +75C Humidity: MIL-STD-810F/G, Method 507.4; 48 hour, 95% RH 40-65C with humidity option Altitude: MIL-STD-810F/G, Method 500.4; 12,500ft operation with 40,000ft transport Vibration: MIL-STD-810F/G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis with solid state drives Shock: MIL-STD-810F/G, Method 516.6, Procedures I/V; 20g, 11msec functional shock; 40g 11msec crash hazard shock Other: MIL-STD-461F/G CE102 & RE102; Meets using CORESYSTEMS optional 461 EMI Kit
Mechanical:
Height - 5.25 in (13.33 cm), Width - 17.00 in (43.18 cm), Depth - 18.00 in (45.72 cm), Weight - 30-35 lbs (13.6-15.8 kg)
CPU:
Intel® CPU architecture options from Intel embedded long-life roadmap; Vapor chamber technology heatsinks; Intel E5-2600v4 Series CPUs; Dual 10-Core or dual 12-Core CPU options
Expansion Slots:
One (5) full-height, 3/4 length slot; multiple PCIe slot combinations are available
External Bays:
Option 1- (std) Two (2) removable hot swap SATA or SAS 2.5 HDDs; Option 2- Two (2) removable hot swap 2.5 SATA SSD HDDs; Option 3- (offered along with option 1 or 2) One (1) slim line CD/DVD (R/W) or Blu-ray ODD
Cooling:
90mm high speed, high volume fans (4 front mount + 2 PS); Thermostatically controlled via motherboard
Power Supply Options:
Option 1- (std) 600W AC power supply; Option 2- 28VDC power supply
System Board:
X9DR3-F, Socket 2011, 256GB ECC Reg. DDR3, PS/2 KB/M, DB9 Serial, VGA, 4-USB, 2-GBLAN, On-board SAS, IPMI w/ KVM over IP
