Rugged M415


The M415 is a short depth rugged 4U server with a max depth of 15". The chassis provides 4 hot swap HDD bays and up to 5 PCIe cards.

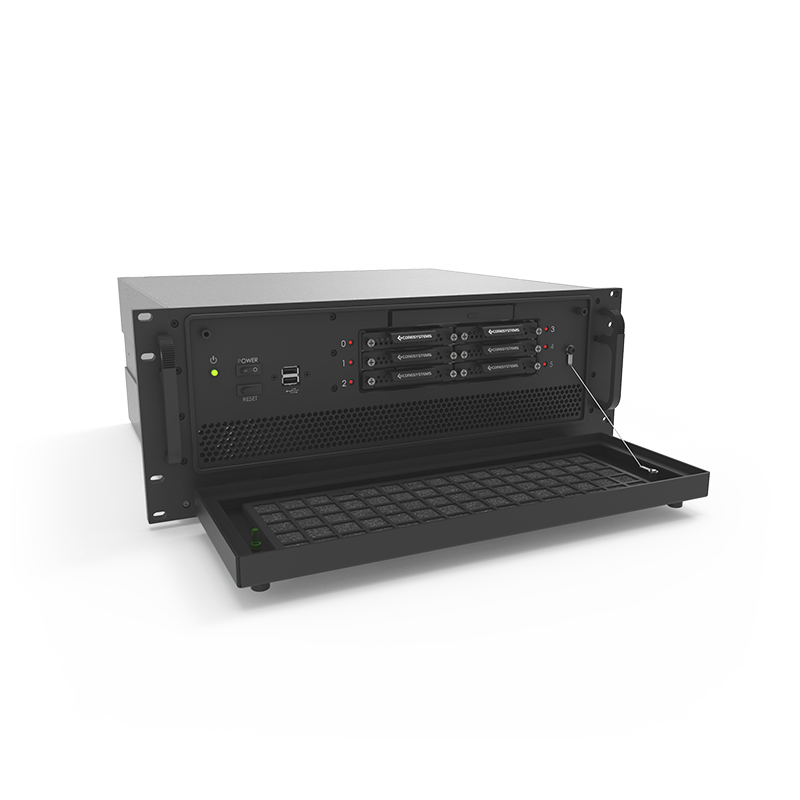

Rugged M415 4U Server

The M415 Raptor is a short depth rugged 4U server made for applications with a maximum 15″ depth requirement. The machined aircraft aluminum chassis provides a superior strength to weight ratio. All internal cabling is customized and secured to the chassis to optimize airflow and system cooling. The M415 supports the latest Intel E5-2600v4 CPUs while providing up to twelve full length PCI/PCI-x/PCIe combination slots on the rear of the chassis. The SBC, along with each individual feature card, is secured to the chassis via a proprietary card hold down system. The M415 server is built to survive high shock and vibration environments. Options for conformal coating and EMI filtering are offered on each system.


Technical Specifications


Environmental Specifications:

Operational Temperature Range: MIL-STD-810F/G, Method 501.5, Procedures I/II; -10C to +50C with solid state drives

Storage: MIL-STD-810F/G, Method 501.5, Procedures I/II; -40C to +75C

Humidity: MIL-STD-810F/G, Method 507.4; 48 hour, 95% RH 40-65C with humidity option

Altitude: MIL-STD-810F/G, Method 500.4; 12,500ft operation with 40,000ft transport

Vibration: MIL-STD-810F/G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hzz, 60min/axis with solid state drives

Shock: MIL-STD-810F/G, Method 516.6, Procedures I/V; 20g, 11msec functional shock; 40g 11msec crash hazard shock

Other: MIL-STD-461F/G CE102 & RE102; Meets using CORESYSTEMS optional 461 EMI Kit

Mechanical:

Height - 7.00 in (17.78 cm), Width - 17.75 in (45.08 cm), Depth - 15.70 in (39.79 cm), Weight - 50-55 lbs (22.6-24.9 kg)

CPU:

IntelĀ® CPU architecture options from Intel embedded long-life roadmap; Vapor chamber technology heatsinks; Nehalem-EP and Westmere-EX; Dual Quad-Core or dual Hexa-Core CPU options

Expansion Slots:

Twelve (12) full-height, full-length slots; multiple slot combinations are available

External Bays:

Option 1- (std) Four (4) removable hot swap SATA or SAS 2.5 or 3.5 HDDs; Option 2- Four (4) removable hot swap 2.5 SATA SSD HDDs; Option 3- (offered along with option 1 or 2) One (1) slim line CD/DVD (R/W) or Blu-ray ODD

Cooling:

QTY 2- 120mm high speed, high volume fans (2 Front mount); Thermostatically controlled via motherboard

Power Supply Options:

Option 1- (std) 750W Redundant 120/240VAC w/PFC; Option 2- 24VDC

System Board:

Dual Quad-Core Xeon CPUs, Socket 1366, 2-48 GB ECC Reg. DDR3, PS/2 KB/M, DB9 Serial, VGA, 2-USB, 2-GBLAN, On-board SAS, IPMI w/ KVM over IP

Request a Quote for the Rugged M415 4U Server
