Rugged ML-1925

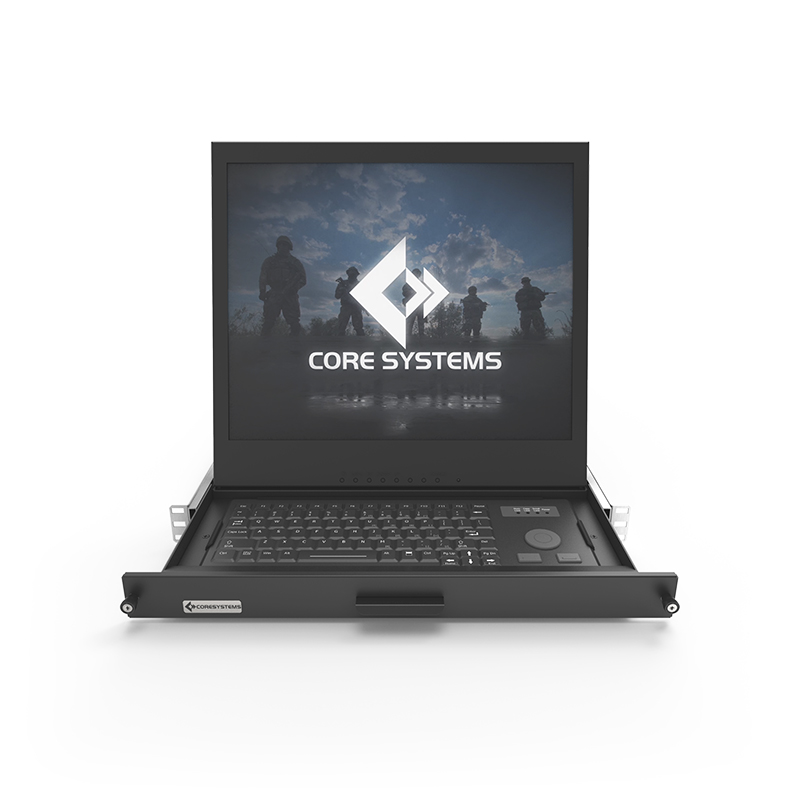

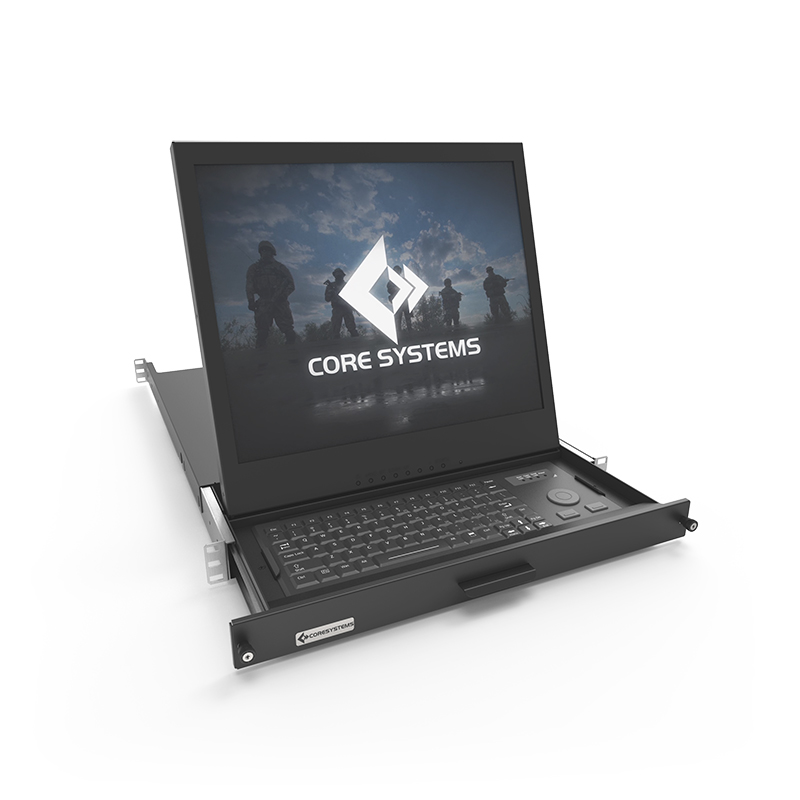

The ML-1925 1U 19" Layflat LCD from Core Systems is fully rugged and ready for military use.

  • Clamshell 19” display with a native pixel resolution of 1280 x 1024.
  • Reinforced quick-release cable retention arm.
  • Hulapoint pointing device.
  • 4 or 8-port KVM for use with multiple computers in a single rack.
  • DVI and VGA input.
  • Anti-reflective glass.

Datasheet

  • Clamshell 19” display with a native pixel resolution of 1280 x 1024.
  • Reinforced quick-release cable retention arm.
  • Hulapoint pointing device.
  • 4 or 8-port KVM for use with multiple computers in a single rack.
  • DVI and VGA input.
  • Anti-reflective glass.

Datasheet

Request A Quote For The Rugged ML-1925

Fill out the form below for pricing and information on the Rugged ML-1925

Rugged Displays

Technical Specifications
Height 1.75 in
Width 19.00 in
Depth 25.00 in
Weight 35.00 lbs
Resolution 1280 x 1024
Display Size 19
Screens 1x
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

2019-Core-Systems-Datasheet-ML1925.pdf

Rugged Displays

Related Designs

Military-Ready Design

Rugged ML-1925 Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Latest Technology

Your system comes equipped with the most powerful computing technology in the industry.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Request A Quote For The Rugged ML-1925

Fill out the form below for pricing and information on the Rugged ML-1925

Rugged ML-1925

Technical Specifications
Height 1.75 in
Width 19.00 in
Depth 25.00 in
Weight 35.00 lbs
Resolution 1280 x 1024
Display Size 19
Screens 1x

Rugged ML-1925

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

Rugged ML-1925
