Rugged Displays

Rugged MP19W

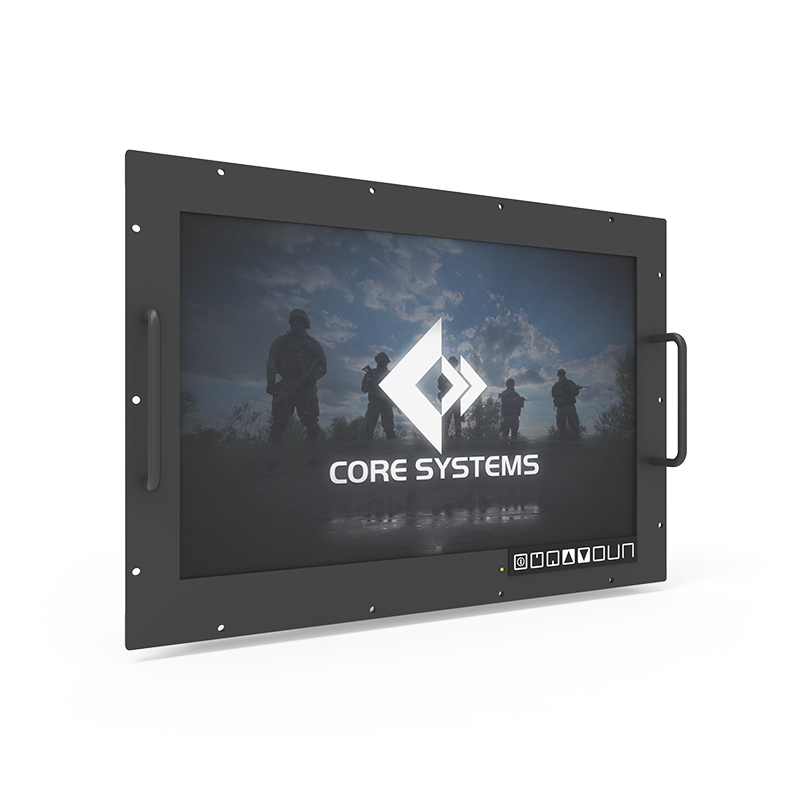

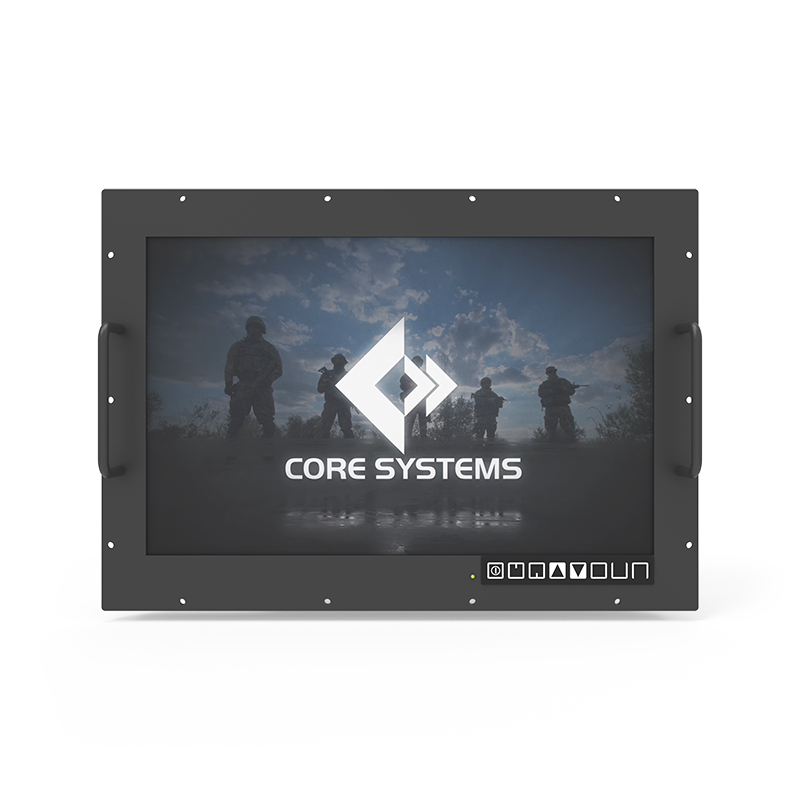

The rugged MP19W is a rugged 19” custom panel mount LCD that can be modified to meet your specifications.

  • Utilizes 8U height and is less than 3 inches deep.
  • Optically-bonded anti-reflective glass with a native resolution of 1440 x 900.
  • Includes 8 or 16 port integrated KVM.

Datasheet

  • Utilizes 8U height and is less than 3 inches deep.
  • Optically-bonded anti-reflective glass with a native resolution of 1440 x 900.
  • Includes 8 or 16 port integrated KVM.

Datasheet

Request A Quote For The Rugged MP19W

Fill out the form below for pricing and information on the Rugged MP19W

Rugged Displays

Technical Specifications
Height 11.00 in
Width 19.75 in
Depth 1.75 in
Weight 29.00 lbs
Resolution 1440 x 900
Display Size 19
Screens 1x
Display Input Standard D-sub 15-pin VGA; DVI-D x 1
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Application-Specific

Built Rugged to Last Long

Core Systems rugged rackmount and panel mount monitors can be custom built to fit your mission's needs.

Rugged Design

Battle-Proven Results

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

2019-Core-Systems-Datasheet-MP19W.pdf

Rugged Displays

Related Designs

Military-Ready Design

Rugged MP19W Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Latest Technology

We provide the latest computing technology to give you the edge you need out in the field.

Ready for Action

With room for expansion, your system has the versatility your mission requires.

Request A Quote For The Rugged MP19W

Fill out the form below for pricing and information on the Rugged MP19W

Rugged MP19W

Technical Specifications
Height 11.00 in
Width 19.75 in
Depth 1.75 in
Weight 29.00 lbs
Resolution 1440 x 900
Display Size 19
Screens 1x

Rugged MP19W

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems rugged rackmount and panel mount monitors can be custom built to fit your mission's needs.

Rugged Design

Battle-Proven Results

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

Rugged MP19W
