Rugged Displays

Rugged MPM12

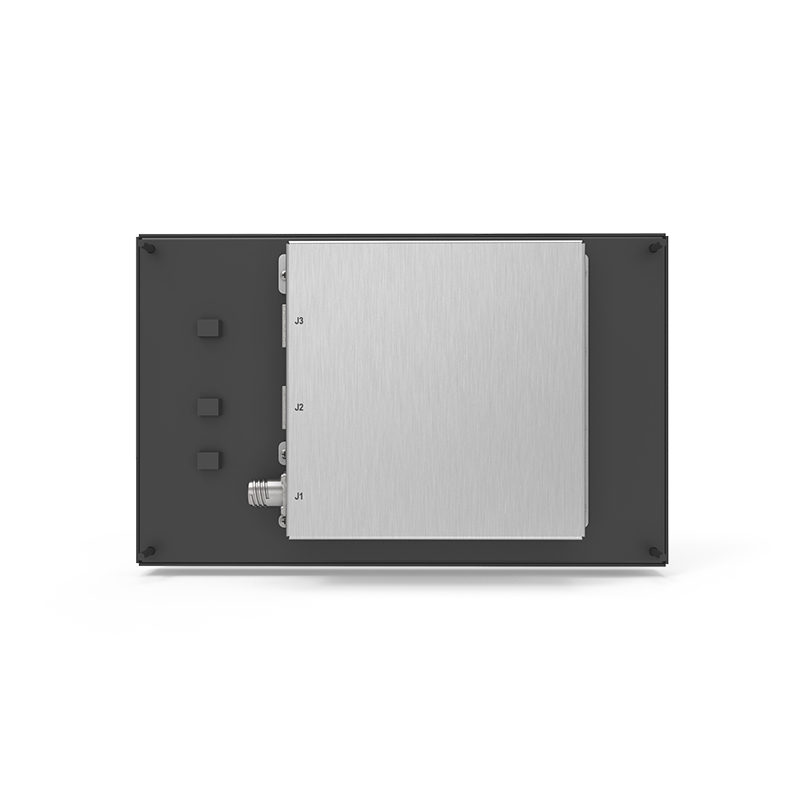

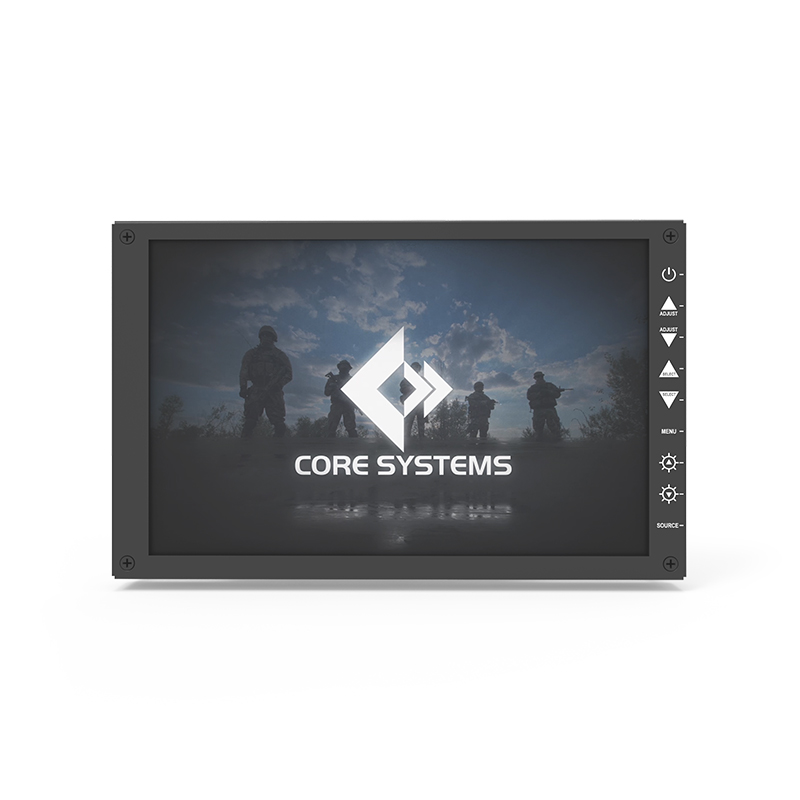

The rugged MPM12 is a rugged 12" LCD with a full OSD.

  • The MPM12 is built with anti-reflective glass and has a native resolution of 1280 x 800.
  • Shock-mounted and tested to meet DO-160E standards.
  • Utilizes 5U height and has a max weight of four pounds.

Datasheet

  • The MPM12 is built with anti-reflective glass and has a native resolution of 1280 x 800.
  • Shock-mounted and tested to meet DO-160E standards.
  • Utilizes 5U height and has a max weight of four pounds.

Datasheet

Rugged Displays

Technical Specifications
Height 7.50 in
Width 12.00 in
Depth 2.34 in
Weight 4.0 lbs
Resolution 1280 x 800
Display Size 12
Screens 1x
Brightness 1000
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems rugged rackmount and panel mount monitors can be custom built to fit your mission's needs.

Application-Specific

Battle-Proven Results

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

2019-Core-Systems-Datasheet-MPM1201.pdf

Rugged Displays

Related Designs

Military-Ready Design

Rugged MPM12 Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Latest Technology

We provide the latest computing technology to give you the edge you need out in the field.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Rugged MPM12

Technical Specifications
Height 7.50 in
Width 12.00 in
Depth 2.34 in
Weight 4.0 lbs
Resolution 1280 x 800
Display Size 12
Screens 1x
Brightness 1000

Rugged MPM12

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems rugged rackmount and panel mount monitors can be custom built to fit your mission's needs.

Application-Specific

Battle-Proven Results

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

Rugged MPM12
