Rugged Displays

Rugged MPM24

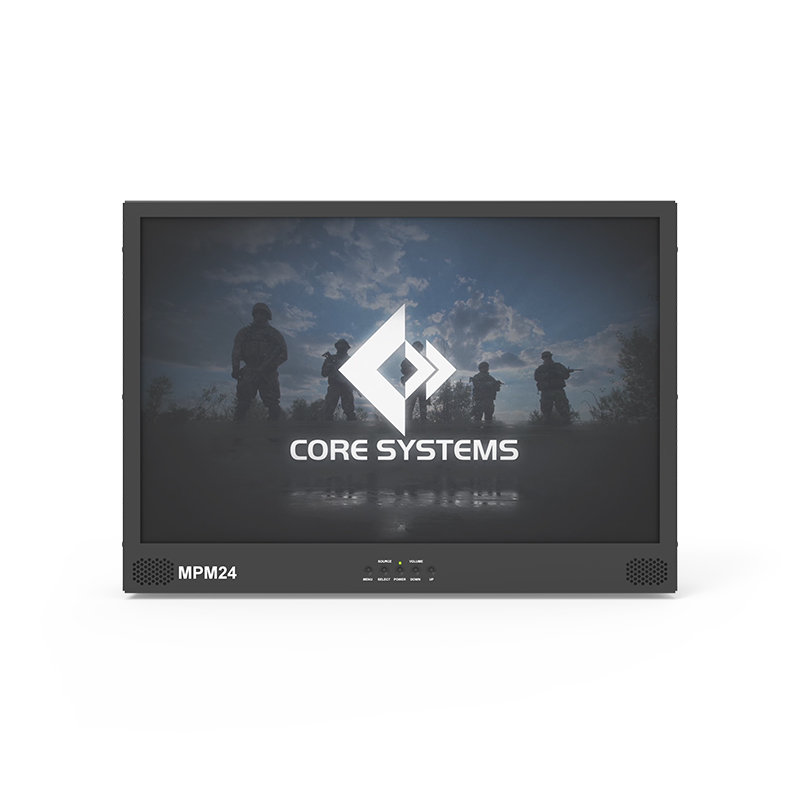

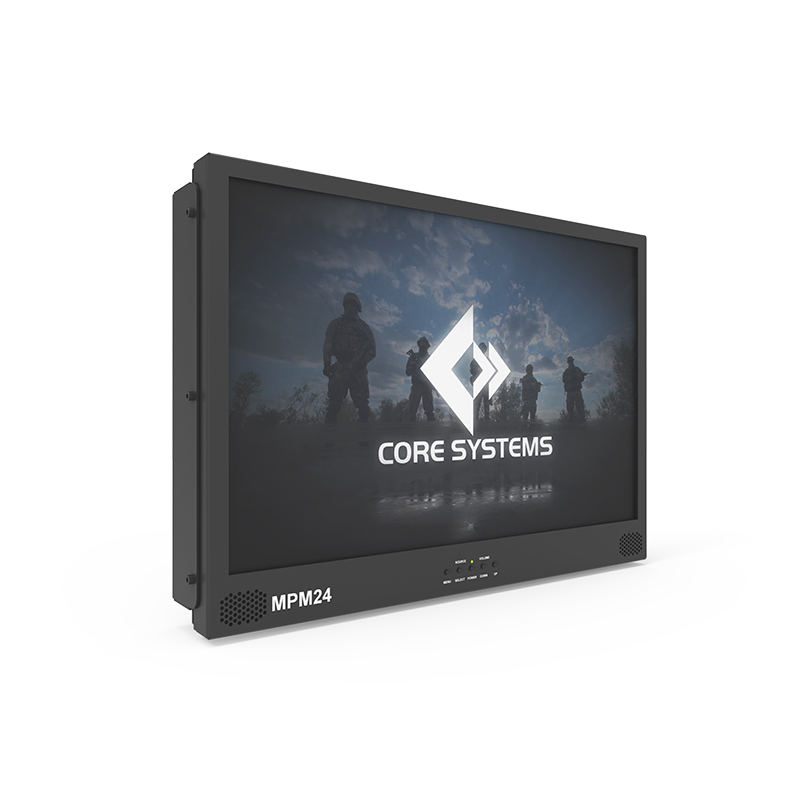

The rugged MPM24 LED Display from Core Systems is an industry-leading MIL-SPEC LCD designed for mounting in-vehicle/trailer.

  • Can be mounted on a rack and optionally desk/bulk mounting.
  • Includes integrated stereo speakers and a 1920 x 1200 max resolution.
  • The SWaP-Optimized MPM24 is 22 inches tall and 3 inches deep.

Datasheet

  • Can be mounted on a rack and optionally desk/bulk mounting.
  • Includes integrated stereo speakers and a 1920 x 1200 max resolution.
  • The SWaP-Optimized MPM24 is 22 inches tall and 3 inches deep.

Datasheet

Request A Quote For The Rugged MPM24

Fill out the form below for pricing and information on the Rugged MPM24

Rugged Displays

Technical Specifications
Height 15.72 in
Width 22.63 in
Depth 3.00 in
Weight 24.00 lbs
Resolution 1920 x 1080
Display Size 24
Screens 1x
Brightness 550
Colors 16.7M
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Application-Specific

Built Rugged to Last Long

Core Systems rugged rackmount and panel mount monitors can be custom built to fit your mission's needs.

Rugged Design

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

2021-Core-Systems-Datasheet-MPM24.pdf

Rugged Displays

Related Designs

Military-Ready Design

Rugged MPM24 Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Latest Technology

Your system comes equipped with the most powerful computing technology in the industry.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Request A Quote For The Rugged MPM24

Fill out the form below for pricing and information on the Rugged MPM24

Rugged MPM24

Technical Specifications
Height 15.72 in
Width 22.63 in
Depth 3.00 in
Weight 24.00 lbs
Resolution 1920 x 1080
Display Size 24
Screens 1x
Brightness 550
Colors 16.7M

Rugged MPM24

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems rugged rackmount and panel mount monitors can be custom built to fit your mission's needs.

Rugged Design

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.
