Rugged MPM7

Rugged Displays

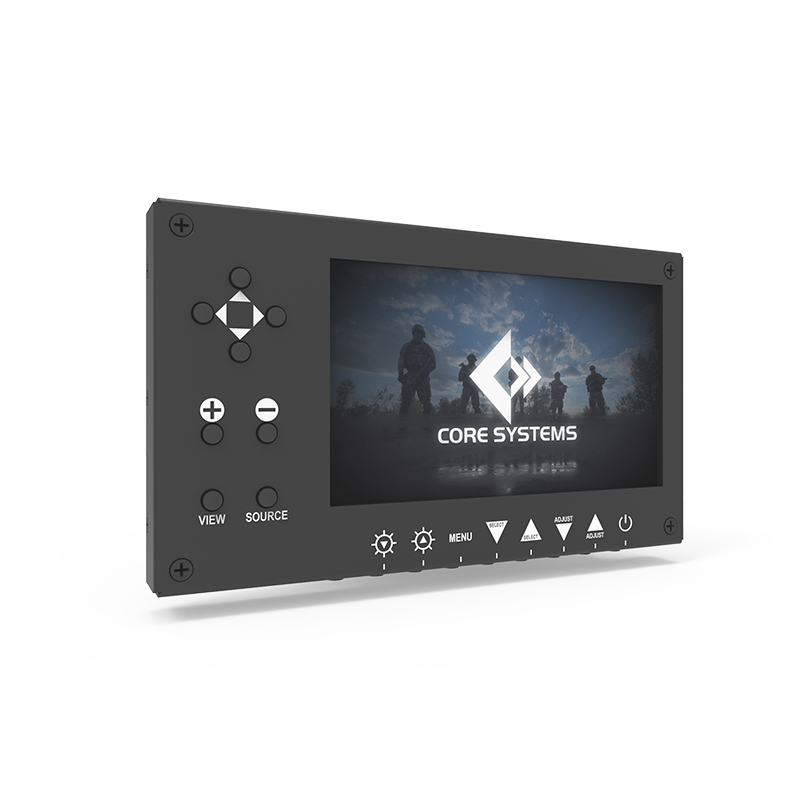

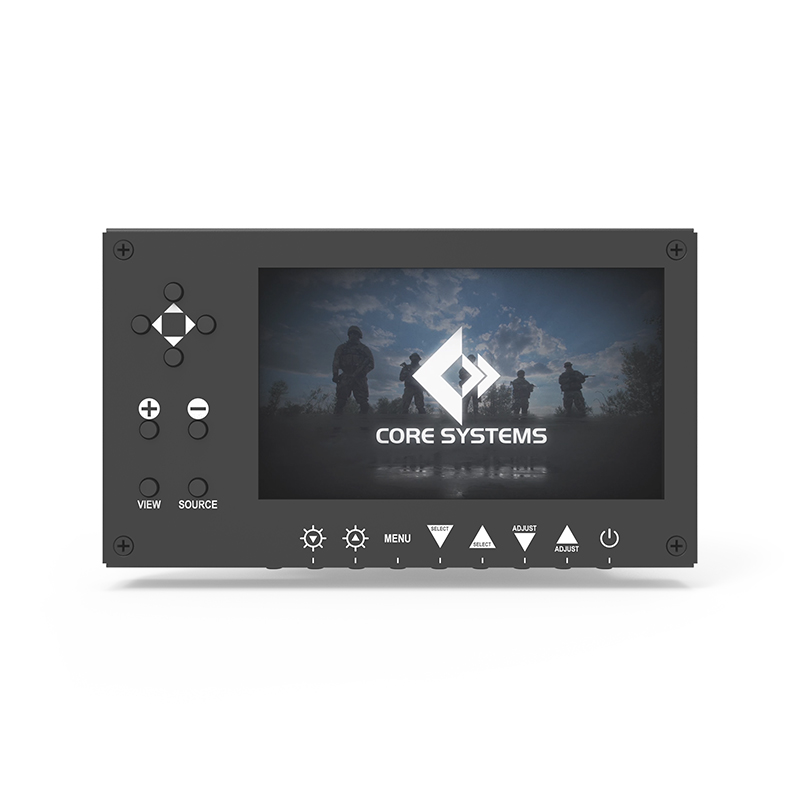

The rugged MPM7 is a rugged 7 inch widescreen LCD with a full on screen display (OSD) and 8-button USB keypad on the front bezel.

  • Anti-reflective glass with a native resolution of 1920 x 1080
  • Shock-mounted and tested to meet DO-160E standards.
  • Utilizes 3U height and has a max weight of three pounds.

Datasheet

  • Anti-reflective glass with a native resolution of 1920 x 1080
  • Shock-mounted and tested to meet DO-160E standards.
  • Utilizes 3U height and has a max weight of three pounds.

Datasheet
Height 5.25 in
Width 9.20 in
Depth 2.35 in
Weight 3.00 lbs
Resolution 1920 x 1080
Display Size 7
Screens 1x
Brightness 700
Input RGB/DVI/HDMI/HD-SDI/S-Video/Composite (Configurable)
Power Power options available
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
