Rugged Displays

Rugged MPN17

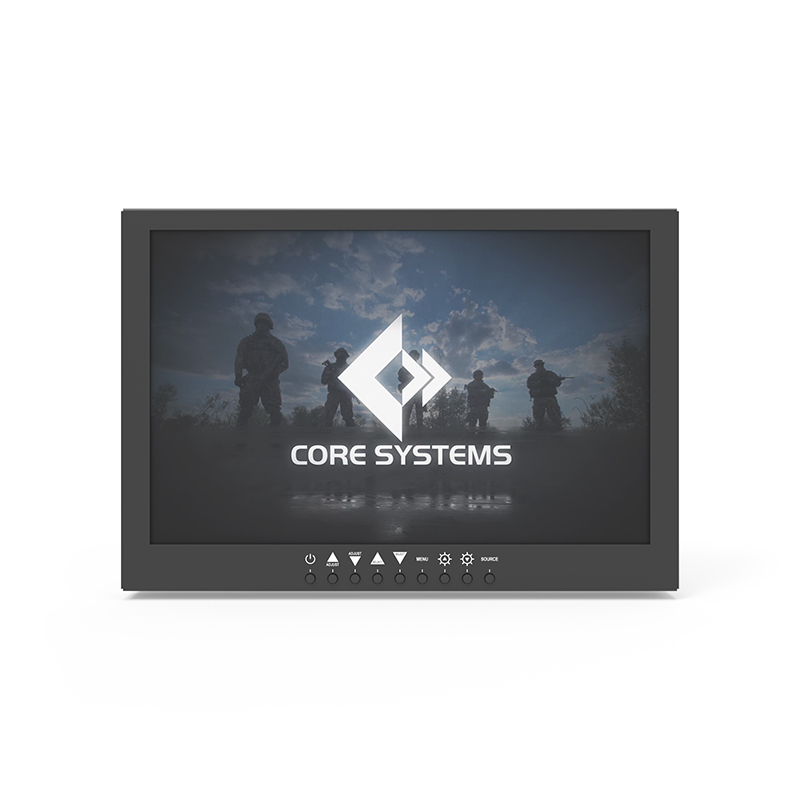

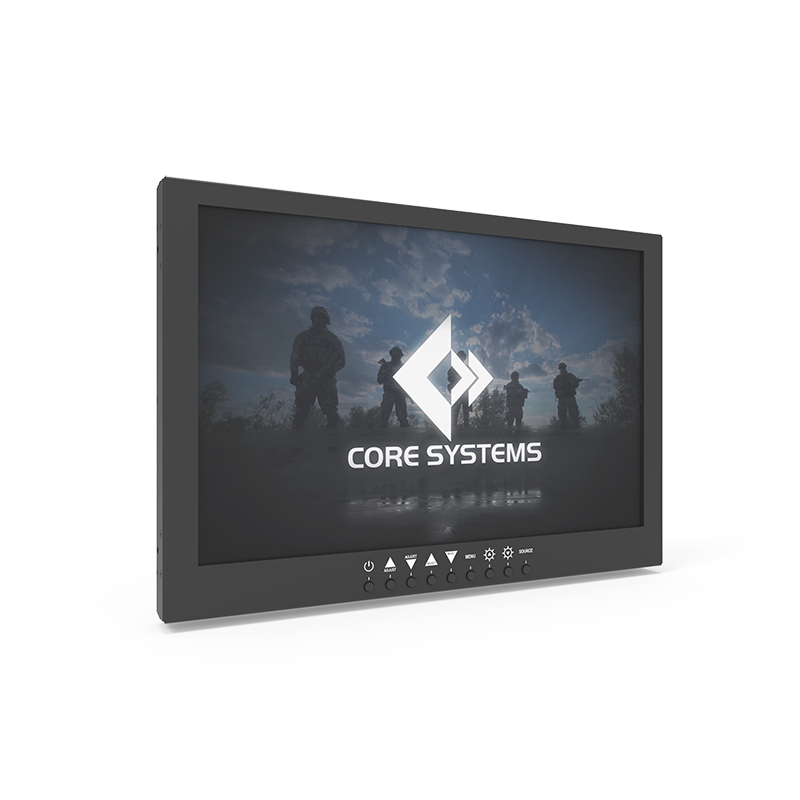

The MPN17 by Core Systems is a rugged 17 inch panel mount LCD with 8U Height.

  • The screen is built with anti-reflective glass and has a native resolution of 1280 x 1024.
  • 8 or 16-port integrated KVM.
  • Shock-mounted and has been tested to meet DO-160E standards.
  • The MPN17 utilizes 8U height and is less than 2 inches deep.



Datasheet

  • The screen is built with anti-reflective glass and has a native resolution of 1280 x 1024.
  • 8 or 16-port integrated KVM.
  • Shock-mounted and has been tested to meet DO-160E standards.
  • The MPN17 utilizes 8U height and is less than 2 inches deep.



Datasheet

Rugged Displays

Technical Specifications
Height 12.00 in
Width 17.24 in
Depth 1.90 in
Weight 14.20 lbs
Resolution 1280 x 1024
Display Size 17
Screens 1x
Brightness 250
Colors 16.7M
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems rugged rackmount and panel mount monitors can be custom built to fit your mission's needs.

Rugged Design

Design to Spec

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

2019-Core-Systems-Datasheet-MPN17.pdf

Rugged Displays

Related Designs

Military-Ready Design

Rugged MPN17 Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Latest Technology

Your system comes equipped with the most powerful computing technology in the industry.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Rugged MPN17

Technical Specifications
Height 12.00 in
Width 17.24 in
Depth 1.90 in
Weight 14.20 lbs
Resolution 1280 x 1024
Display Size 17
Screens 1x
Brightness 250
Colors 16.7M

Rugged MPN17

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems rugged rackmount and panel mount monitors can be custom built to fit your mission's needs.

Rugged Design

Design to Spec

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.
