Rugged Mission Computers

Rugged PCC

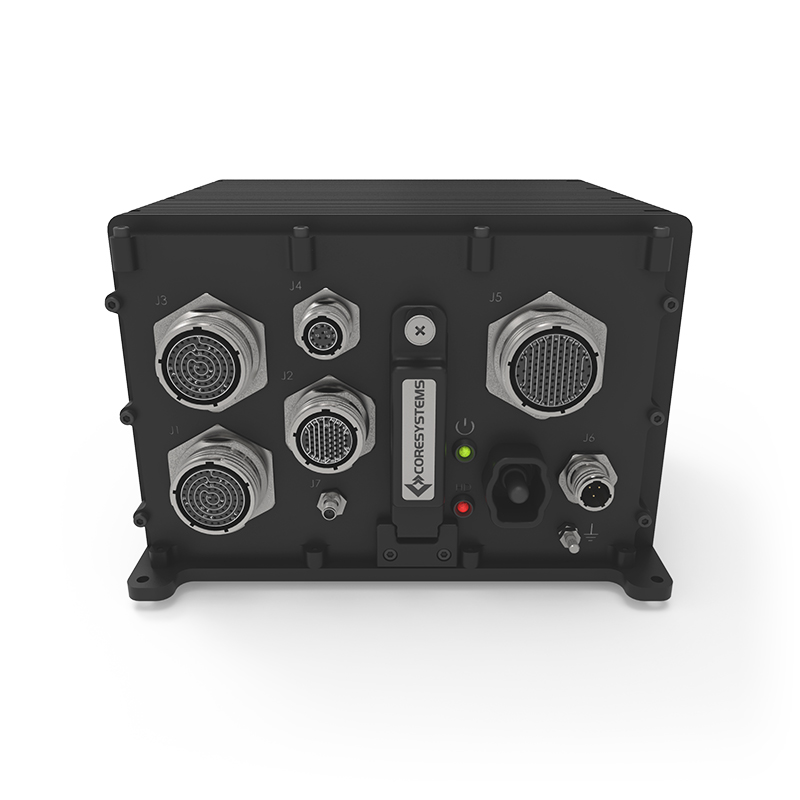

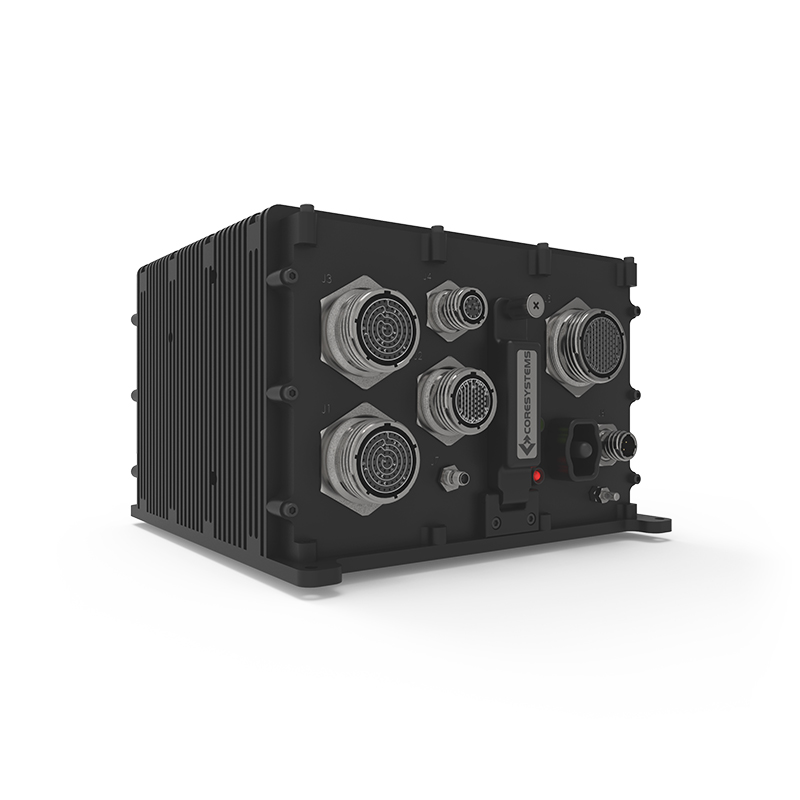

The rugged PCC01 Mission Computer from Core Systems is a rugged custom-built sealed fanless tactical computer build for the military.

  • Extended temperature design with a range of -40C to +85C.
  • Tested for MIL-S-901D Shock, MIL-STD-167-1 Vibration, MIL-STD-810G Shock & Vibration, MIL-STD-810F Humidity, and MIL-STD-461E/F EMC.
  • Includes a 500GB solid-state drive which is installed in a removable carrier.
  • Application-Specific
  • Military-Grade Design

Datasheet

  • Extended temperature design with a range of -40C to +85C.
  • Tested for MIL-S-901D Shock, MIL-STD-167-1 Vibration, MIL-STD-810G Shock & Vibration, MIL-STD-810F Humidity, and MIL-STD-461E/F EMC.
  • Includes a 500GB solid-state drive which is installed in a removable carrier.
  • Application-Specific
  • Military-Grade Design

Datasheet

Rugged Mission Computers

Technical Specifications
Height 6.50 in
Width 11.00 in
Depth 11.00 in
Weight 6.50 lbs
Power 28VDC
RAM 8GB
Processor Latest Intel CPU
Storage One (1) 2.5” 500GB SSD drive
Cores 4-12x
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

Rugged mission computers can be designed to meet the specifications of your mission.

2019-Core-Systems-Datasheet-PCC01.pdf

Rugged Mission Computers

Related Designs

Military-Ready Design

Rugged PCC Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged PCC

Technical Specifications
Height 6.50 in
Width 11.00 in
Depth 11.00 in
Weight 6.50 lbs
Power 28VDC
RAM 8GB
Processor Latest Intel CPU
Storage One (1) 2.5” 500GB SSD drive

Rugged PCC

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

Rugged mission computers can be designed to meet the specifications of your mission.

Rugged PCC

Request Quote
