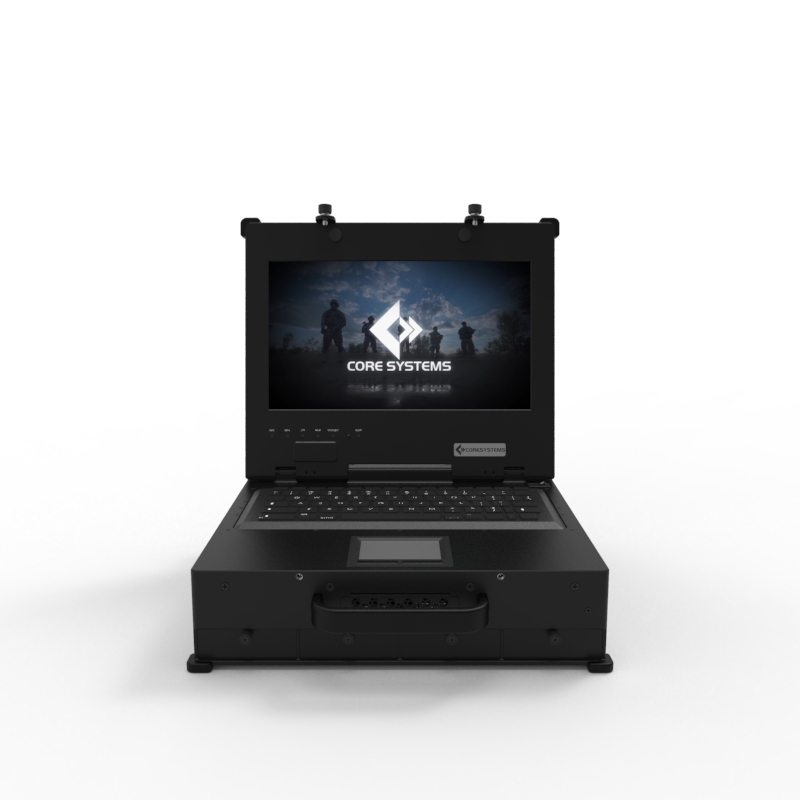

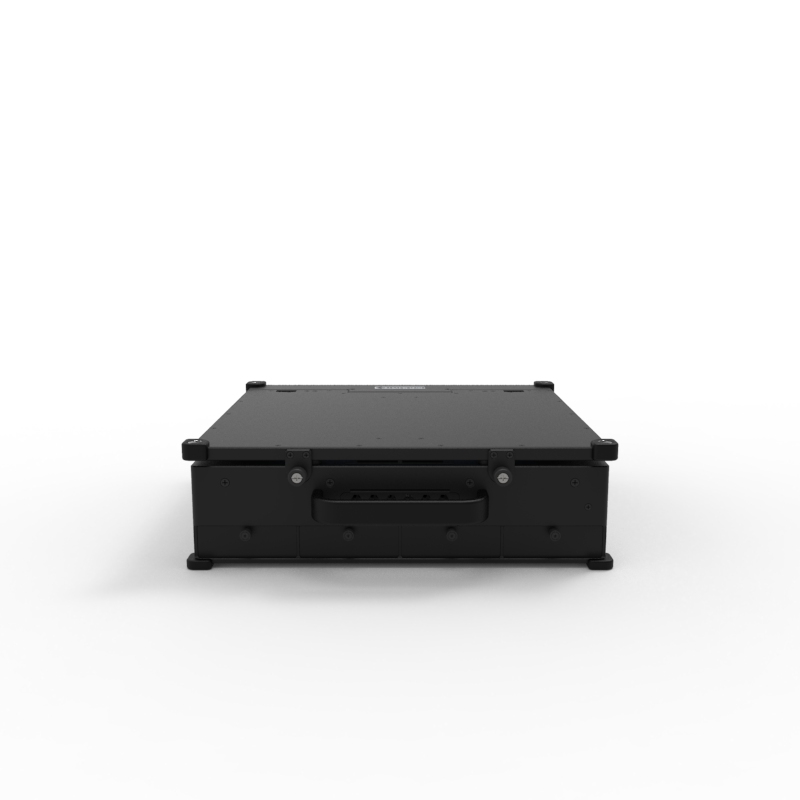

Rugged RPS211D Laptop

Rugged Laptops

The RPS211D is a rugged MIL-SPEC 16-Core portable server built for military environments

Engineered for high shock/vibration and temperature.
Includes integrated Intel Xeon 16-Core processor
Utilizes the onboard PCIe RAID card for high-security, storage-intensive applications.
128GB RAM
Up to 8 hot-swap SSDs

Datasheet


Height	3.75 in
Width	12.40 in
Depth	11.64 in
Weight	16.20 lbs
Resolution	1920 x 1080
Display Size	11
Power	100/240VAC, 120W
RAM	128GB
Storage	8x 2.5" SSD
Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)


Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)

Built Rugged to Last Long

Core Systems provide a line of ruggedized laptops that can add the versatility you need for your mission.

We design, build, and deploy our rugged laptops from the United States.

2019-Core-Systems-Datasheet-211D.pdf

Fill out the form for pricing and information

Space-saving design built for your application.

We provide the latest computing technology to give you the edge you need out in the field.

With room for expansion, your system has the versatility your mission requires.
