Rugged Laptops

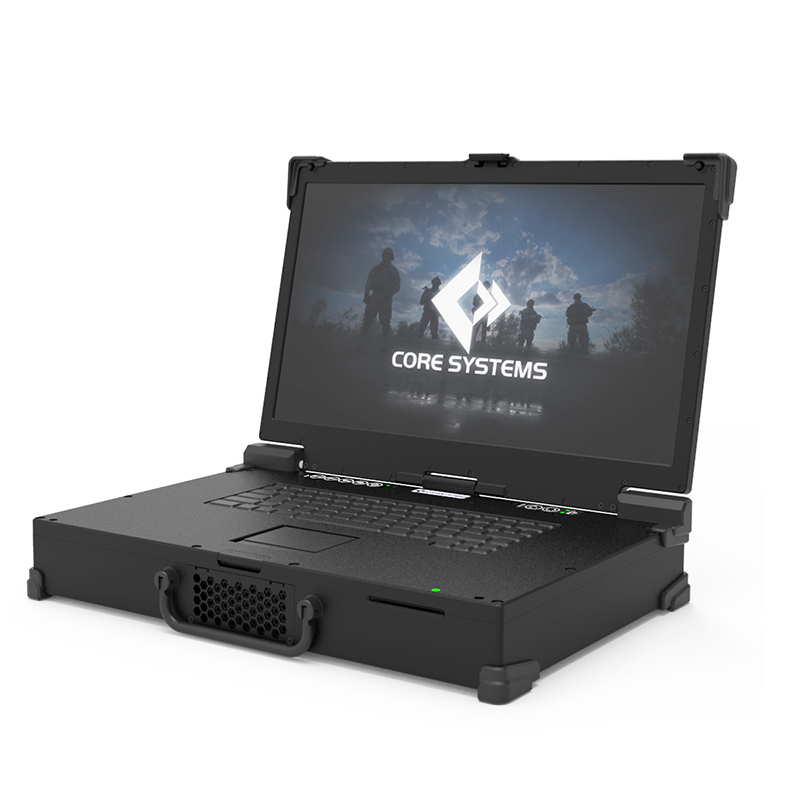

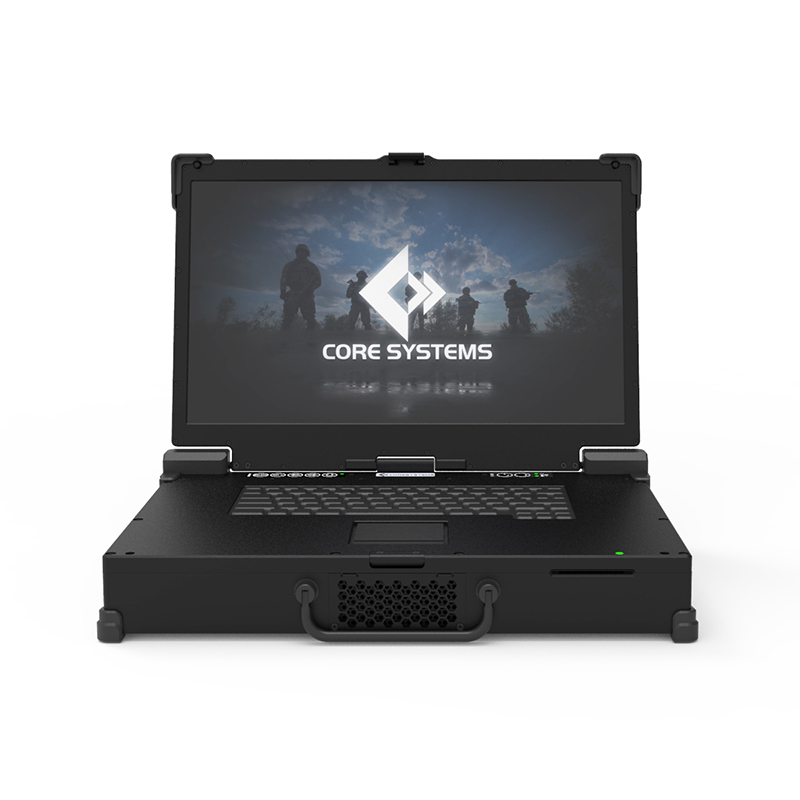

Rugged RPS317 Laptop

The Core Systems RPS317 is a rugged MIL-Spec 16-Core portable server with 2x the CPU performance of the previous 16-Core RPS217 in a lighter chassis.

  • 17.3” HD LCD
  • Upgraded 16-Core Xeon CPU
  • 512GB RAM with dual SSD drives.
  • Engineered for high shock/vibration and wide temperature.
  • The onboard Intel Xeon 16-Core processor provides true server-class performance in a compact rugged portable form factor.

Datasheet

  • 17.3” HD LCD
  • Upgraded 16-Core Xeon CPU
  • 512GB RAM with dual SSD drives.
  • Engineered for high shock/vibration and wide temperature.
  • The onboard Intel Xeon 16-Core processor provides true server-class performance in a compact rugged portable form factor.

Datasheet

Rugged Laptops

Technical Specifications
Height 3.14 in
Width 16.65 in
Depth 11.40 in
Weight 16.41 lbs
Resolution 1920 x 1080
Display Size 17
Power 100/240VAC
RAM 512GB
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Application-Specific

Built Rugged to Last Long

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

2022-Core-Systems-Datasheet-317.pdf

Rugged Laptops

Related Designs

Military-Ready Design

Rugged RPS317 Laptop Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged RPS317 Laptop

Technical Specifications
Height 3.14 in
Width 16.65 in
Depth 11.40 in
Weight 16.41 lbs
Resolution 1920 x 1080
Display Size 17
Power 100/240VAC
RAM 512GB

Rugged RPS317 Laptop

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Application-Specific

Built Rugged to Last Long

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.
